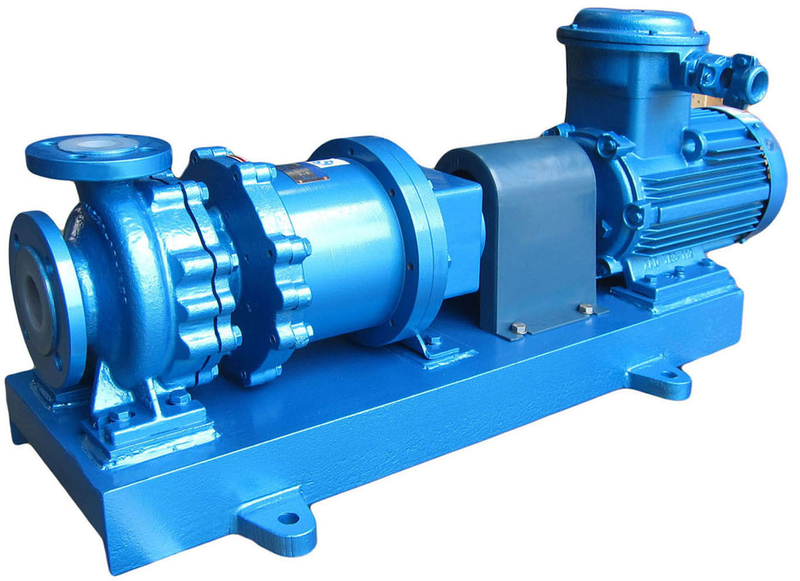

IMC plastic magnetic-driving centrifugal pump is a product with national patent. Its design conforms to ISO2858. The overflow component has a structure of steel-plastic compound. There is shaft coupling in the magnetic centrifugal pump. For reparation, uninstall shaft coupling and there is no need to uninstall pipes and motor.
Flow capacity:1.8 -400m3 /h, lift head: 15 -80m, highest temperature 200 ℃, pressure 1.0MPA
Transfer hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid and mixture of organic & inorganic acid.
The acid coupled magnetic centrifugal pump is with a suspension frame. When transfer high temperature medium, there is no need for a cooling case. The surface of the pump casing and the joint is lined with dovetail grooves, lined with various fluorine resins and polymer plastics. The pump shaft, impeller, isolating sleeve and inner magnetic steel components are made of reinforced carbon fiber and PEEK. These enhance the plastic layer's intensity, temperature resistance, abrasion resistance, preventing steel and plastic from peeling off, comparing to single resin.
It is a product with the latest technology.
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
25-20-125 | 1.8 2.5 3.3 | 20.6 20 18 | 2800 | 0.56 0.57 0.70 | 18 24 23 | 2.0 2.0 2.5 | 80S-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
25-20-160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 1.09 1.10 1.3 | 15 19 20 | 2.0 2.0 2.5 | 90S-2 1.5 | 90L-2 2.2 | 100L-2 3 |
32-25-110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.4 0.45 0.54 | 30 36 35 | 2.0 2.0 2.5 | 801-2 0.75 | 802-2 1.1 | 90S-2 1.5 |
32-25-125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.65 0.72 0.87 | 24 30 29 | 2.0 2.0 2.5 | 802-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 2900 | 4.28 4.86 5.16 | 25 35 38 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-125 | 15 25 30 | 22 20 18.5 | 2900 | 1.96 2.31 2.47 | 46 59 61 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-50-125A | 13.5 22.5 27 | 18 16.2 14.5 | 2900 | 1.47 1.71 1.77 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-125B | 12.8 21.3 25.6 | 16.5 14.5 13 | 2900 | 1.24 1.45 1.51 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-160 | 15 25 30 | 35 32 30 | 2900 | 3.25 3.96 4.38 | 44 55 56 | 2.0 2.0 2.5 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-160A | 13.5 22.5 27 | 28.5 26 24 | 2900 | 2.44 3.12 3.39 | 43 51 52 | 2.0 2.0 2.5 | 112M-2 4 | 132S1-2 5.5 | 132S2-2 7.5 |
65-50-160B | 12.8 21.3 25.6 | 25.5 23.1 21.0 | 2900 | 2.12 2.68 2.87 | 42 50 51 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-40-200 | 15 25 30 | 53 50 47 | 2900 | 6.02 7.09 7.83 | 36 48 49 | 2.0 2.0 2.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
65-40-200A | 13.5 22.5 27 | 43 40.5 37.5 | 2900 | 4.52 5.39 5.87 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
65-40-200B | 12.8 21.3 25.6 | 38.5 36 34.5 | 2900 | 3.84 4.54 5.11 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
65-40-250 | 15 25 30 | 82 80 78.5 | 2900 | 12.42 13.96 15.64 | 27 39 41 | 2.0 2.0 2.5 | 160L-2 18.5 | 180M-2 22 | 200L-2 30 |
65-40-250A | 13.5 22.5 27 | 67 65 63.5 | 2900 | 9.47 10.48 11.67 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160L-2 18.5 | 180M-2 22 |
65-40-250B | 12.8 21.3 25.6 | 59.8 57.8 56.3 | 2900 | 8.03 8.83 9.81 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160M2-2 15 | 160L-2 18.5 |
65-40-315 | 15 25 30 | 127 125 123 | 2900 | 27.33 27.44 30.44 | 19 31 33 | 2.4 2.4 3.0 | 200L2-2 37 | 225M-2 45 | 280S-2 75 |
65-40-315A | 13.5 22.5 27 | 103 101 98 | 2900 | 18.93 20.63 22.52 | 20 30 32 | 2.4 2.4 3.0 | 200L1-2 30 | 200L1-2 30 | 225M-2 45 |
65-40-315B | 12.8 21.3 25.6 | 92 90 88 | 2900 | 16.05 17.41 19.17 | 20 30 32 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-65-125 | 30 50 60 | 22.5 20 18 | 2900 | 3.40 4.19 4.60 | 54 65 64 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
80-65-125A | 27.6 46 55.2 | 18.5 16.2 14 | 2900 | 2.68 3.22 3.39 | 52 63 62 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S1-2 5.5 | 132S2-2 7.5 |
80-65-125B | 25.5 42.5 51 | 16.5 14.5 12.5 | 2900 | 2.20 2.66 2.80 | 52 63 62 | 2.4 2.4 3.0 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
80-65-160 | 30 50 60 | 34 32 29 | 2900 | 5.55 7.03 7.78 | 50 62 61 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-65-160A | 27.6 46 55.2 | 28.5 26 23 | 2900 | 4.56 5.52 5.96 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
80-65-160B | 25.5 42.5 51 | 25.5 23.1 20.0 | 2900 | 3.77 4.53 4.79 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
80-50-200 | 30 50 60 | 53 50 47 | 2900 | 9.84 11.75 12.84 | 44 58 60 | 2.4 2.4 3.0 | 160M2-2 15 | 160L-2 18.5 | 200L1-2 30 |
80-50-200A | 27.6 46 55.2 | 43 40.5 37.5 | 2900 | 7.52 8.90 9.55 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
80-50-200B | 25.5 42.5 51 | 39 36 33 | 2900 | 6.30 7.31 7.73 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-50-250 | 30 50 60 | 84 80 75 | 2900 | 17.15 21.38 23.61 | 40 51 52 | 2.4 2.4 3.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
80-50-250A | 27.5 46 55.2 | 69 65 60 | 2900 | 12.97 16.29 17.68 | 40 50 51 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-50-250B | 25.5 42.5 51 | 61.8 57.8 52.8 | 2900 | 10.72 13.38 14.38 | 40 50 51 | 2.4 2.4 3.0 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
80-50-315 | 30 50 60 | 128 125 123 | 2900 | 36.05 40.56 44.75 | 29 42 45 | 2.4 2.4 3.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
80-50-315A | 27.6 46 55.2 | 103 101 98 | 2900 | 27.39 30.67 33.47 | 28 41 44 | 2.4 2.4 3.0 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
80-50-315B | 25.5 42.5 51 | 92 90 88 | 2900 | 20.81 25.42 27.78 | 28 41 44 | 2.4 2.4 3.0 | 200L1-2 30 | 225M-2 45 | 225M-2 45 |
100-80-125 | 60 100 120 | 23 20 16.5 | 2900 | 6.49 7.90 8.29 | 58 69 65 | 3.2 3.2 4.5 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
100-80-125A | 54 90 108 | 19.2 16.2 12.9 | 2900 | 4.95 5.84 5.93 | 57 68 64 | 3.2 3.2 4.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
100-80-125B | 48 80 96 | 17.5 14.5 11 | 2900 | 4.08 4.71 4.57 | 56 67 63 | 3.2 3.2 4.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160 | 60 100 120 | 35 32 28 | 2900 | 10.32 13.02 14.28 | 56 67 64 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-80-160A | 54 90 108 | 29 26 22 | 2900 | 7.75 9.66 10.27 | 55 60 63 | 3.2 3.2 4.5 | 160M2-2 15 | 160M2-2 15 | 180M-2 22 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
100-65-200A | 54 90 108 | 44.5 40.5 37.5 | 2900 | 14.71 16.01 17.5 | 51 62 63 | 3.2 3.2 4.5 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
100-65-200B | 48 80 96 | 40 36 33 | 2900 | 10.46 12.86 13.88 | 50 61 62 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-65-250 | 60 100 120 | 86 80 74.5 | 2900 | 28.16 35.74 39.26 | 50 61 62 | 3.2 3.2 4.5 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
100-65-250A | 54 90 108 | 71 65 59 | 2900 | 20.88 26.12 28.0 | 50 61 62 | 3.2 3.2 4.5 | 200L2-2 37 | 225M-2 45 | 250M-2 55 |
100-65-250B | 48 80 96 | 63.8 57.8 52 | 2900 | 17.02 20.99 22.29 | 49 60 61 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
100-65-315 | 60 100 120 | 132 125 118 | 2900 | 50.26 63.09 70.11 | 43 54 55 | 3.2 3.2 4.5 | 280S-2 75 | 315S-2 110 | 315M-2 132 |
100-65-315A | 54 90 108 | 108 101 94 | 2900 | 38.74 47.61 52.16 | 41 52 53 | 3.2 3.2 4.5 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
100-65-315B | 48 80 96 | 97 90 83 | 2900 | 30.92 37.70 40.95 | 41 52 53 | 3.2 3.2 4.5 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-200 | 120 200 240 | 54 50 47 | 2900 | 34.16 39.47 42.79 | 55 69 68 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
125-100-200A | 108 180 216 | 48 40.5 35 | 2900 | 26.14 29.20 30.73 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 250M-2 55 | 280S-2 75 |
125-100-200B | 90 150 180 | 43 36 30.5 | 2900 | 19.52 22.31 24.50 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 200L2-2 37 | 250M-2 55 |
125-100-250 | 120 200 240 | 87 80 74.5 | 2900 | 52.65 66.02 72.68 | 54 66 67 | 4.5 4.5 5.0 | 280S-2 75 | 315S-2 110 | 315L1-2 160 |
125-100-250A | 108 180 216 | 72 65 59.5 | 2900 | 39.96 49.02 53.03 | 53 65 66 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
125-100-250B | 90 150 180 | 64.8 57.8 54 | 2900 | 29.97 41.15 42 | 53 65 66 | 4.5 4.5 5.0 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-315 | 120 200 240 | 132.5 125 120 | 2900 | 80.2 104 118 | 54 65 66 | 4.5 4.5 5.0 | 315M-2 132 | 315M-2 132 | 315L1-2 160 |
125-100-315A | 108 180 216 | 107.3 101.3 97.2 | 2900 | 59.5 78.8 90.7 | 53 63 63 | 4.5 4.5 5.0 | 315S-2 110 | 315M-2 132 | 315L1-2 160 |
125-100-315B | 96 160 192 | 84.8 80 76.8 | 2900 | 41.8 56.2 64.8 | 53 62 62 | 4.5 4.5 5.0 | 280M-2 90 | 315S-2 110 | 315M-2 132 |
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
50-32-125 | 3.75 6.3 7.5 | 5.5 5 4.6 | 1450 | 0.16 0.19 0.20 | 36 46 47 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125A | 3.4 5.7 6.8 | 4.5 4.1 3.6 | 1450 | 0.12 0.14 0.15 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125B | 3.1 5.2 6.2 | 4 3.6 3.3 | 1450 | 0.10 0.11 0.12 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160 | 3.75 6.3 7.5 | 8.6 8 7.2 | 1450 | 0.31 0.35 0.37 | 28 39 40 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
50-32-160A | 3.4 5.7 6.8 | 7.1 6.5 5.8 | 1450 | 0.24 0.26 0.28 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160B | 3.1 5.2 6.2 | 6.4 5.8 5.1 | 1450 | 0.20 0.22 0.22 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-200 | 3.75 6.3 7.5 | 13.1 12.5 12 | 1450 | 0.61 0.69 0.74 | 22 31 33 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
50-32-200A | 3.4 5.7 6.8 | 10.8 10.1 9.6 | 1450 | 0.47 0.52 0.56 | 21 30 32 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
50-32-200B | 3.1 5.2 6.2 | 9.6 9 8.5 | 1450 | 0.39 0.42 0.45 | 21 30 32 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
50-32-250 | 3.75 6.3 7.5 | 20.5 20 19.5 | 1450 | 1.39 1.42 1.47 | 15 24 27 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
50-32-250A | 3.4 5.7 6.8 | 16.8 16.3 15.9 | 1450 | 1.03 1.09 1.13 | 15 23 26 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
50-32-250B | 3.1 5.2 6.2 | 15 14.5 14.1 | 1450 | 0.84 0.89 0.91 | 15 23 26 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-50-125 | 7.5 12.5 15 | 5.5 5 4.6 | 1450 | 0.27 0.31 0.34 | 42 54 55 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-50-125A | 6.8 11.3 13.6 | 4.5 4.1 3.6 | 1450 | 0.20 0.24 0.25 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-125B | 6.1 10.1 12.1 | 4 3.6 3.3 | 1450 | 0.16 0.19 0.22 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-160 | 7.5 12.5 15 | 8.8 8.0 7.2 | 1450 | 0.46 0.54 0.58 | 38 50 51 | 2.0 2.0 2.5 | 802-4 0.75 | 90L-4 1.1 | 90L-4 1.1 |
65-50-160A | 6.8 11.3 13.6 | 7.1 6.5 5.8 | 1450 | 0.36 0.41 0.43 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90L-4 1.1 |
65-50-160B | 6.1 10.1 12.1 | 6.4 5.8 5.1 | 1450 | 0.29 0.33 0.34 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-40-200 | 7.5 12.5 15 | 13.2 12.5 11.8 | 1450 | 0.87 0.99 1.07 | 31 43 45 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-40-200A | 6.8 11.3 13.6 | 10.8 10.1 9.6 | 1450 | 0.67 0.74 0.81 | 30 42 44 | 2.0 2.0 2.5 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
65-40-200B | 6.1 10.1 12.1 | 9.6 9 8.5 | 1450 | 0.53 0.59 0.64 | 30 42 44 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
65-40-250 | 7.5 12.5 15 | 20.5 20 19.5 | 1450 | 1.82 1.94 2.10 | 23 35 38 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
65-40-250A | 6.8 11.3 13.6 | 16.8 16.3 15.9 | 1450 | 1.41 1.48 1.59 | 22 34 37 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
65-40-250B | 6.1 10.1 12.1 | 15 14.5 14.1 | 1450 | 1.12 1.17 1.26 | 22 34 37 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
65-40-315 | 7.5 12.5 15 | 32.3 32 30.7 | 1450 | 3.29 3.89 4.18 | 20 28 31 | 2.5 2.5 3.0 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
65-40-315A | 6.8 11.3 13.6 | 25.8 25.2 24.5 | 1450 | 2.33 2.87 2.93 | 20 29 31 | 2.5 2.5 3.0 | 112M-4 4 | 112M-4 4 | 132S-4 5.5 |
65-40-315B | 6.1 10.1 12.1 | 23 22.5 22 | 1450 | 1.91 2.30 2.34 | 20 27 31 | 2.5 2.5 3.0 | 100L-4 3 | 112M-4 4 | 132S-4 5.5 |
80-65-125 | 15 25 30 | 5.6 5.0 4.5 | 1450 | 0.51 0.56 0.58 | 45 61 62 | 2.5 2.5 3.0 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
80-65-125A | 13.5 22.5 27 | 4.5 4.1 3.6 | 1450 | 0.38 0.42 0.43 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
80-65-125B | 12.8 21.3 25.6 | 4 3.6 3.3 | 1450 | 0.32 0.35 0.38 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
80-65-160 | 15 25 30 | 9 8 7.2 | 1450 | 0.82 0.92 1.01 | 45 59 58 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-65-160A | 13.5 22.5 27 | 7.1 6.5 5.8 | 1450 | 0.59 0.69 0.75 | 44 58 57 | 2.3 2.3 2.8 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
80-65-160B | 12.8 21.3 25.6 | 6.4 5.8 5.1 | 1450 | 0.51 0.58 0.67 | 44 58 57 | 2.3 2.3 2.8 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
80-50-200 | 15 25 30 | 13.2 12.5 11.8 | 1450 | 1.32 1.55 1.69 | 41 55 57 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-200A | 13.5 22.5 27 | 10.8 10.1 9.6 | 1450 | 0.99 1.15 1.26 | 40 54 56 | 2.3 2.3 2.8 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
80-50-200B | 12.8 21.3 25.6 | 9.6 9 8.5 | 1450 | 0.84 0.97 1.06 | 40 54 56 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-50-250 | 15 25 30 | 21 20 18.8 | 1450 | 2.32 2.83 3.13 | 37 48 49 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
80-50-250A | 13.5 22.5 27 | 16.8 16.3 15.1 | 1450 | 1.72 2.13 2.31 | 36 47 48 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
80-50-250B | 12.8 21.3 25.6 | 15 14.5 13.4 | 1450 | 1.45 1.79 1.95 | 36 47 48 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-315 | 15 25 30 | 32.5 32 31.5 | 1450 | 4.92 5.58 6.43 | 27 39 40 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
80-50-315A | 13.5 22.5 27 | 25.8 25.2 24.5 | 1450 | 3.65 4.06 4.62 | 26 38 39 | 2.3 2.3 2.8 | 132S-4 4 | 132M-4 7.5 | 160M-4 11 |
80-50-315B | 12.8 21.3 25.6 | 23 22.5 22 | 1450 | 3.09 3.44 3.93 | 26 38 39 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-80-125 | 30 50 60 | 6 5 4.1 | 1450 | 0.88 1.02 1.05 | 56 67 64 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125A | 27.6 46 55.2 | 4.5 4.1 3.6 | 1450 | 0.62 0.78 0.86 | 55 66 63 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125B | 25.5 42.5 51 | 4 3.6 3.3 | 1450 | 0.50 0.63 0.73 | 55 66 63 | 2.5 2.5 3.0 | 802S-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
100-80-160 | 30 50 60 | 9.2 8.0 6.8 | 1450 | 1.32 1.68 1.83 | 57 65 61 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-80-160A | 27.5 46 55.2 | 7.1 6.5 5.8 | 1450 | 0.95 1.27 1.45 | 56 64 60 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
100-80-160B | 25.5 42.5 51 | 6.4 5.8 5.1 | 1450 | 0.79 1.05 1.18 | 56 64 60 | 2.5 2.5 3.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
100-65-200 | 30 50 60 | 13.5 12.5 11.8 | 1450 | 2.35 2.75 3.07 | 49 62 63 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-200A | 27.6 46 55.2 | 10.8 10.1 9.6 | 1450 | 1.69 2.07 2.33 | 48 61 62 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
100-65-200B | 25.5 42.5 51 | 9.6 9.0 8.5 | 1450 | 1.39 1.71 1.90 | 48 61 62 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-65-250 | 30 50 60 | 21.3 20 19 | 1450 | 3.78 4.62 5.10 | 46 59 61 | 2.3 2.3 2.8 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
100-65-250A | 27.6 46 55.2 | 16.8 16.3 15.9 | 1450 | 2.81 3.52 3.98 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132S-4 5.5 |
100-65-250B | 25.5 42.5 51 | 15 14.5 14 | 1450 | 2.31 2.89 3.24 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-315 | 30 50 60 | 34 32 30 | 1450 | 7.12 8.55 9.45 | 39 51 52 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
100-65-315A | 27.6 46 55.2 | 26 25.2 24.5 | 1450 | 5.14 6.31 7.22 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
100-65-315B | 25.5 42.5 51 | 23 22.5 22 | 1450 | 4.20 5.21 5.99 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-200 | 60 100 120 | 14.5 12.5 11.0 | 1450 | 4.40 5.01 5.36 | 54 68 67 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200A | 54 90 108 | 11.5 10.5 9.8 | 1450 | 3.19 3.84 4.37 | 53 67 66 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200B | 48 80 96 | 9.8 9.0 8.5 | 1450 | 2.42 2.93 3.37 | 53 67 66 | 2.8 2.8 3.5 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
125-100-250 | 60 100 120 | 21.3 20 19 | 1450 | 6.71 8.39 9.26 | 52 65 67 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-250A | 54 90 108 | 16.8 16.3 15.9 | 1450 | 4.84 6.24 7.08 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-250B | 48 80 96 | 15.0 14.5 14.0 | 1450 | 3.84 4.94 5.55 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 132S-4 5.5 | 160M-4 11 |
125-100-315 | 60 100 120 | 33.5 32 30.5 | 1450 | 12.2 14.5 16.3 | 45 60 61 | 2.5 2.5 3.0 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
125-100-315A | 54 90 108 | 27.1 25.9 24.7 | 1450 | 9.0 10.8 12.1 | 44 59 60 | 2.5 2.5 3.0 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
125-100-315B | 48 80 96 | 21.4 20.5 19.5 | 1450 | 6.5 7.7 8.6 | 43 58 59 | 2.5 2.5 3.0 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-400 | 60 100 120 | 52 50 48.5 | 1450 | 17.0 26.2 29.4 | 50 52 54 | 2.5 2.5 3.0 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
125-100-400A | 54 90 108 | 42.1 40.5 39.3 | 1450 | 12.4 19 21.4 | 50 52 54 | 2.5 2.5 3.0 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
125-100-400B | 48 80 96 | 33.3 32 31 | 1450 | 8.9 13.7 15.3 | 49 51 53 | 2.5 2.5 3.0 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250 | 120 200 240 | 24.8 20 15 | 1450 | 15.6 17.3 18.2 | 52 63 54 | 2.5 2.8 3.5 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250A | 108 180 216 | 20.1 16.2 12.2 | 1450 | 11.6 12.8 13.5 | 51 62 53 | 2.5 2.8 3.5 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
150-125-250B | 97.2 162 194 | 15.9 12.8 9.6 | 1450 | 8.3 9.1 9.6 | 51 62 53 | 2.5 2.8 3.5 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
150-125-315 | 120 200 240 | 36.3 32 28.5 | 1450 | 23.7 28.1 31.6 | 50 62 59 | 2.5 2.8 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
150-125-315A | 108 180 216 | 29.4 25.9 23.1 | 1450 | 17.3 20.5 23.0 | 50 62 59 | 2.5 2.8 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
150-125-315B | 97.2 162 194 | 23.2 20.5 18.3 | 1450 | 12.5 14.8 16.7 | 49 61 58 | 2.5 2.8 3.8 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-400 | 120 200 240 | 57.5 50 44 | 1450 | 40.0 48.6 58.7 | 47 56 49 | 2.0 2.8 3.5 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
150-125-400A | 108 180 216 | 46.6 40.5 35.6 | 1450 | 29.2 35.5 42.7 | 47 56 49 | 2.0 2.8 3.5 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
150-125-400B | 97.2 162 194 | 36.8 32 28.2 | 1450 | 20.7 25.2 35.4 | 47 56 49 | 2.0 2.8 3.5 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250 | 240 400 460 | 24.8 20 18 | 1450 | 28.9 32.5 38.8 | 56 67 58 | 2.8 3.2 3.8 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-250A | 216 360 414 | 20.1 16.2 14.6 | 1450 | 21.5 24.0 28.9 | 55 66 57 | 2.8 3.2 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250B | 192 320 368 | 15.9 12.8 11.6 | 1450 | 15.1 16.9 20.4 | 55 66 57 | 2.8 3.2 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
200-150-315 | 240 400 460 | 36.3 32 28.5 | 1450 | 43.1 52.0 54.9 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315A | 216 360 414 | 29.4 25.9 23.1 | 1450 | 31.4 37.9 40.0 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315B | 192 320 368 | 23.2 20.5 18.3 | 1450 | 22.5 27.0 28.7 | 54 66 64 | 3.0 3.5 4.0 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-400 | 240 400 460 | 56 50 46.5 | 1450 | 67.8 89.3 104.0 | 54 61 56 | 3.0 3.8 4.5 | 315S-4 110 | 315M-4 132 | 315L1-4 |
200-150-400A | 216 360 414 | 45.3 40.5 37.7 | 1450 | 49.4 65.1 75.9 | 54 61 56 | 3.0 3.8 4.5 | 280M-4 90 | 315S-4 110 | 315M-4 132 |
200-150-400B | 192 320 368 | 35.8 32 29.8 | 1450 | 34.7 45.7 53.3 | 54 61 56 | 3.0 3.8 4.5 | 280S-4 75 | 280M-4 90 | 315S-4 110 |
Magnetic pump is a kind of magnetic actuator (magnetic coupling) to achieve contactless torque transmission, so as to replace the dynamic seal with static seal, thus making the pump completely leak-free. As the pump shaft, the inner magnetic rotor is completely closed by the pump body and the shroud, thus eliminating the safety hazard of flammable, explosive, toxic and harmful media in the oil refining and chemical industry leaking through the pump seal.
Magnetic pump in the operation process to pay attention to the following points: ∶
1. Prevent particles from entering. Do not allow ferromagnetic impurities particles into the magnetic drive and bearing friction.
2. Flush in time after conveying media that are easy to crystallize or precipitate, in order to protect the service life of the sliding bearing.
3. When conveying media containing solid particles, filter at the inlet of the pump flow pipe.
4. Prevent demagnetization. The magnetic torque should not be designed too small.
5. Prevent dry friction.
IMC plastic magnetic-driving centrifugal pump is a product with national patent. Its design conforms to ISO2858. The overflow component has a structure of steel-plastic compound. There is shaft coupling in the magnetic centrifugal pump. For reparation, uninstall shaft coupling and there is no need to uninstall pipes and motor.
Flow capacity:1.8 -400m3 /h, lift head: 15 -80m, highest temperature 200 ℃, pressure 1.0MPA
Transfer hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid and mixture of organic & inorganic acid.
The acid coupled magnetic centrifugal pump is with a suspension frame. When transfer high temperature medium, there is no need for a cooling case. The surface of the pump casing and the joint is lined with dovetail grooves, lined with various fluorine resins and polymer plastics. The pump shaft, impeller, isolating sleeve and inner magnetic steel components are made of reinforced carbon fiber and PEEK. These enhance the plastic layer's intensity, temperature resistance, abrasion resistance, preventing steel and plastic from peeling off, comparing to single resin.
It is a product with the latest technology.
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
25-20-125 | 1.8 2.5 3.3 | 20.6 20 18 | 2800 | 0.56 0.57 0.70 | 18 24 23 | 2.0 2.0 2.5 | 80S-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
25-20-160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 1.09 1.10 1.3 | 15 19 20 | 2.0 2.0 2.5 | 90S-2 1.5 | 90L-2 2.2 | 100L-2 3 |
32-25-110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.4 0.45 0.54 | 30 36 35 | 2.0 2.0 2.5 | 801-2 0.75 | 802-2 1.1 | 90S-2 1.5 |
32-25-125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.65 0.72 0.87 | 24 30 29 | 2.0 2.0 2.5 | 802-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 2900 | 4.28 4.86 5.16 | 25 35 38 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-125 | 15 25 30 | 22 20 18.5 | 2900 | 1.96 2.31 2.47 | 46 59 61 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-50-125A | 13.5 22.5 27 | 18 16.2 14.5 | 2900 | 1.47 1.71 1.77 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-125B | 12.8 21.3 25.6 | 16.5 14.5 13 | 2900 | 1.24 1.45 1.51 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-160 | 15 25 30 | 35 32 30 | 2900 | 3.25 3.96 4.38 | 44 55 56 | 2.0 2.0 2.5 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-160A | 13.5 22.5 27 | 28.5 26 24 | 2900 | 2.44 3.12 3.39 | 43 51 52 | 2.0 2.0 2.5 | 112M-2 4 | 132S1-2 5.5 | 132S2-2 7.5 |
65-50-160B | 12.8 21.3 25.6 | 25.5 23.1 21.0 | 2900 | 2.12 2.68 2.87 | 42 50 51 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-40-200 | 15 25 30 | 53 50 47 | 2900 | 6.02 7.09 7.83 | 36 48 49 | 2.0 2.0 2.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
65-40-200A | 13.5 22.5 27 | 43 40.5 37.5 | 2900 | 4.52 5.39 5.87 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
65-40-200B | 12.8 21.3 25.6 | 38.5 36 34.5 | 2900 | 3.84 4.54 5.11 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
65-40-250 | 15 25 30 | 82 80 78.5 | 2900 | 12.42 13.96 15.64 | 27 39 41 | 2.0 2.0 2.5 | 160L-2 18.5 | 180M-2 22 | 200L-2 30 |
65-40-250A | 13.5 22.5 27 | 67 65 63.5 | 2900 | 9.47 10.48 11.67 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160L-2 18.5 | 180M-2 22 |
65-40-250B | 12.8 21.3 25.6 | 59.8 57.8 56.3 | 2900 | 8.03 8.83 9.81 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160M2-2 15 | 160L-2 18.5 |
65-40-315 | 15 25 30 | 127 125 123 | 2900 | 27.33 27.44 30.44 | 19 31 33 | 2.4 2.4 3.0 | 200L2-2 37 | 225M-2 45 | 280S-2 75 |
65-40-315A | 13.5 22.5 27 | 103 101 98 | 2900 | 18.93 20.63 22.52 | 20 30 32 | 2.4 2.4 3.0 | 200L1-2 30 | 200L1-2 30 | 225M-2 45 |
65-40-315B | 12.8 21.3 25.6 | 92 90 88 | 2900 | 16.05 17.41 19.17 | 20 30 32 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-65-125 | 30 50 60 | 22.5 20 18 | 2900 | 3.40 4.19 4.60 | 54 65 64 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
80-65-125A | 27.6 46 55.2 | 18.5 16.2 14 | 2900 | 2.68 3.22 3.39 | 52 63 62 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S1-2 5.5 | 132S2-2 7.5 |
80-65-125B | 25.5 42.5 51 | 16.5 14.5 12.5 | 2900 | 2.20 2.66 2.80 | 52 63 62 | 2.4 2.4 3.0 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
80-65-160 | 30 50 60 | 34 32 29 | 2900 | 5.55 7.03 7.78 | 50 62 61 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-65-160A | 27.6 46 55.2 | 28.5 26 23 | 2900 | 4.56 5.52 5.96 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
80-65-160B | 25.5 42.5 51 | 25.5 23.1 20.0 | 2900 | 3.77 4.53 4.79 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
80-50-200 | 30 50 60 | 53 50 47 | 2900 | 9.84 11.75 12.84 | 44 58 60 | 2.4 2.4 3.0 | 160M2-2 15 | 160L-2 18.5 | 200L1-2 30 |
80-50-200A | 27.6 46 55.2 | 43 40.5 37.5 | 2900 | 7.52 8.90 9.55 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
80-50-200B | 25.5 42.5 51 | 39 36 33 | 2900 | 6.30 7.31 7.73 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-50-250 | 30 50 60 | 84 80 75 | 2900 | 17.15 21.38 23.61 | 40 51 52 | 2.4 2.4 3.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
80-50-250A | 27.5 46 55.2 | 69 65 60 | 2900 | 12.97 16.29 17.68 | 40 50 51 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-50-250B | 25.5 42.5 51 | 61.8 57.8 52.8 | 2900 | 10.72 13.38 14.38 | 40 50 51 | 2.4 2.4 3.0 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
80-50-315 | 30 50 60 | 128 125 123 | 2900 | 36.05 40.56 44.75 | 29 42 45 | 2.4 2.4 3.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
80-50-315A | 27.6 46 55.2 | 103 101 98 | 2900 | 27.39 30.67 33.47 | 28 41 44 | 2.4 2.4 3.0 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
80-50-315B | 25.5 42.5 51 | 92 90 88 | 2900 | 20.81 25.42 27.78 | 28 41 44 | 2.4 2.4 3.0 | 200L1-2 30 | 225M-2 45 | 225M-2 45 |
100-80-125 | 60 100 120 | 23 20 16.5 | 2900 | 6.49 7.90 8.29 | 58 69 65 | 3.2 3.2 4.5 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
100-80-125A | 54 90 108 | 19.2 16.2 12.9 | 2900 | 4.95 5.84 5.93 | 57 68 64 | 3.2 3.2 4.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
100-80-125B | 48 80 96 | 17.5 14.5 11 | 2900 | 4.08 4.71 4.57 | 56 67 63 | 3.2 3.2 4.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160 | 60 100 120 | 35 32 28 | 2900 | 10.32 13.02 14.28 | 56 67 64 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-80-160A | 54 90 108 | 29 26 22 | 2900 | 7.75 9.66 10.27 | 55 60 63 | 3.2 3.2 4.5 | 160M2-2 15 | 160M2-2 15 | 180M-2 22 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
100-65-200A | 54 90 108 | 44.5 40.5 37.5 | 2900 | 14.71 16.01 17.5 | 51 62 63 | 3.2 3.2 4.5 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
100-65-200B | 48 80 96 | 40 36 33 | 2900 | 10.46 12.86 13.88 | 50 61 62 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-65-250 | 60 100 120 | 86 80 74.5 | 2900 | 28.16 35.74 39.26 | 50 61 62 | 3.2 3.2 4.5 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
100-65-250A | 54 90 108 | 71 65 59 | 2900 | 20.88 26.12 28.0 | 50 61 62 | 3.2 3.2 4.5 | 200L2-2 37 | 225M-2 45 | 250M-2 55 |
100-65-250B | 48 80 96 | 63.8 57.8 52 | 2900 | 17.02 20.99 22.29 | 49 60 61 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
100-65-315 | 60 100 120 | 132 125 118 | 2900 | 50.26 63.09 70.11 | 43 54 55 | 3.2 3.2 4.5 | 280S-2 75 | 315S-2 110 | 315M-2 132 |
100-65-315A | 54 90 108 | 108 101 94 | 2900 | 38.74 47.61 52.16 | 41 52 53 | 3.2 3.2 4.5 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
100-65-315B | 48 80 96 | 97 90 83 | 2900 | 30.92 37.70 40.95 | 41 52 53 | 3.2 3.2 4.5 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-200 | 120 200 240 | 54 50 47 | 2900 | 34.16 39.47 42.79 | 55 69 68 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
125-100-200A | 108 180 216 | 48 40.5 35 | 2900 | 26.14 29.20 30.73 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 250M-2 55 | 280S-2 75 |
125-100-200B | 90 150 180 | 43 36 30.5 | 2900 | 19.52 22.31 24.50 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 200L2-2 37 | 250M-2 55 |
125-100-250 | 120 200 240 | 87 80 74.5 | 2900 | 52.65 66.02 72.68 | 54 66 67 | 4.5 4.5 5.0 | 280S-2 75 | 315S-2 110 | 315L1-2 160 |
125-100-250A | 108 180 216 | 72 65 59.5 | 2900 | 39.96 49.02 53.03 | 53 65 66 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
125-100-250B | 90 150 180 | 64.8 57.8 54 | 2900 | 29.97 41.15 42 | 53 65 66 | 4.5 4.5 5.0 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-315 | 120 200 240 | 132.5 125 120 | 2900 | 80.2 104 118 | 54 65 66 | 4.5 4.5 5.0 | 315M-2 132 | 315M-2 132 | 315L1-2 160 |
125-100-315A | 108 180 216 | 107.3 101.3 97.2 | 2900 | 59.5 78.8 90.7 | 53 63 63 | 4.5 4.5 5.0 | 315S-2 110 | 315M-2 132 | 315L1-2 160 |
125-100-315B | 96 160 192 | 84.8 80 76.8 | 2900 | 41.8 56.2 64.8 | 53 62 62 | 4.5 4.5 5.0 | 280M-2 90 | 315S-2 110 | 315M-2 132 |
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
50-32-125 | 3.75 6.3 7.5 | 5.5 5 4.6 | 1450 | 0.16 0.19 0.20 | 36 46 47 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125A | 3.4 5.7 6.8 | 4.5 4.1 3.6 | 1450 | 0.12 0.14 0.15 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125B | 3.1 5.2 6.2 | 4 3.6 3.3 | 1450 | 0.10 0.11 0.12 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160 | 3.75 6.3 7.5 | 8.6 8 7.2 | 1450 | 0.31 0.35 0.37 | 28 39 40 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
50-32-160A | 3.4 5.7 6.8 | 7.1 6.5 5.8 | 1450 | 0.24 0.26 0.28 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160B | 3.1 5.2 6.2 | 6.4 5.8 5.1 | 1450 | 0.20 0.22 0.22 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-200 | 3.75 6.3 7.5 | 13.1 12.5 12 | 1450 | 0.61 0.69 0.74 | 22 31 33 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
50-32-200A | 3.4 5.7 6.8 | 10.8 10.1 9.6 | 1450 | 0.47 0.52 0.56 | 21 30 32 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
50-32-200B | 3.1 5.2 6.2 | 9.6 9 8.5 | 1450 | 0.39 0.42 0.45 | 21 30 32 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
50-32-250 | 3.75 6.3 7.5 | 20.5 20 19.5 | 1450 | 1.39 1.42 1.47 | 15 24 27 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
50-32-250A | 3.4 5.7 6.8 | 16.8 16.3 15.9 | 1450 | 1.03 1.09 1.13 | 15 23 26 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
50-32-250B | 3.1 5.2 6.2 | 15 14.5 14.1 | 1450 | 0.84 0.89 0.91 | 15 23 26 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-50-125 | 7.5 12.5 15 | 5.5 5 4.6 | 1450 | 0.27 0.31 0.34 | 42 54 55 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-50-125A | 6.8 11.3 13.6 | 4.5 4.1 3.6 | 1450 | 0.20 0.24 0.25 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-125B | 6.1 10.1 12.1 | 4 3.6 3.3 | 1450 | 0.16 0.19 0.22 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-160 | 7.5 12.5 15 | 8.8 8.0 7.2 | 1450 | 0.46 0.54 0.58 | 38 50 51 | 2.0 2.0 2.5 | 802-4 0.75 | 90L-4 1.1 | 90L-4 1.1 |
65-50-160A | 6.8 11.3 13.6 | 7.1 6.5 5.8 | 1450 | 0.36 0.41 0.43 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90L-4 1.1 |
65-50-160B | 6.1 10.1 12.1 | 6.4 5.8 5.1 | 1450 | 0.29 0.33 0.34 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-40-200 | 7.5 12.5 15 | 13.2 12.5 11.8 | 1450 | 0.87 0.99 1.07 | 31 43 45 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-40-200A | 6.8 11.3 13.6 | 10.8 10.1 9.6 | 1450 | 0.67 0.74 0.81 | 30 42 44 | 2.0 2.0 2.5 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
65-40-200B | 6.1 10.1 12.1 | 9.6 9 8.5 | 1450 | 0.53 0.59 0.64 | 30 42 44 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
65-40-250 | 7.5 12.5 15 | 20.5 20 19.5 | 1450 | 1.82 1.94 2.10 | 23 35 38 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
65-40-250A | 6.8 11.3 13.6 | 16.8 16.3 15.9 | 1450 | 1.41 1.48 1.59 | 22 34 37 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
65-40-250B | 6.1 10.1 12.1 | 15 14.5 14.1 | 1450 | 1.12 1.17 1.26 | 22 34 37 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
65-40-315 | 7.5 12.5 15 | 32.3 32 30.7 | 1450 | 3.29 3.89 4.18 | 20 28 31 | 2.5 2.5 3.0 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
65-40-315A | 6.8 11.3 13.6 | 25.8 25.2 24.5 | 1450 | 2.33 2.87 2.93 | 20 29 31 | 2.5 2.5 3.0 | 112M-4 4 | 112M-4 4 | 132S-4 5.5 |
65-40-315B | 6.1 10.1 12.1 | 23 22.5 22 | 1450 | 1.91 2.30 2.34 | 20 27 31 | 2.5 2.5 3.0 | 100L-4 3 | 112M-4 4 | 132S-4 5.5 |
80-65-125 | 15 25 30 | 5.6 5.0 4.5 | 1450 | 0.51 0.56 0.58 | 45 61 62 | 2.5 2.5 3.0 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
80-65-125A | 13.5 22.5 27 | 4.5 4.1 3.6 | 1450 | 0.38 0.42 0.43 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
80-65-125B | 12.8 21.3 25.6 | 4 3.6 3.3 | 1450 | 0.32 0.35 0.38 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
80-65-160 | 15 25 30 | 9 8 7.2 | 1450 | 0.82 0.92 1.01 | 45 59 58 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-65-160A | 13.5 22.5 27 | 7.1 6.5 5.8 | 1450 | 0.59 0.69 0.75 | 44 58 57 | 2.3 2.3 2.8 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
80-65-160B | 12.8 21.3 25.6 | 6.4 5.8 5.1 | 1450 | 0.51 0.58 0.67 | 44 58 57 | 2.3 2.3 2.8 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
80-50-200 | 15 25 30 | 13.2 12.5 11.8 | 1450 | 1.32 1.55 1.69 | 41 55 57 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-200A | 13.5 22.5 27 | 10.8 10.1 9.6 | 1450 | 0.99 1.15 1.26 | 40 54 56 | 2.3 2.3 2.8 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
80-50-200B | 12.8 21.3 25.6 | 9.6 9 8.5 | 1450 | 0.84 0.97 1.06 | 40 54 56 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-50-250 | 15 25 30 | 21 20 18.8 | 1450 | 2.32 2.83 3.13 | 37 48 49 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
80-50-250A | 13.5 22.5 27 | 16.8 16.3 15.1 | 1450 | 1.72 2.13 2.31 | 36 47 48 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
80-50-250B | 12.8 21.3 25.6 | 15 14.5 13.4 | 1450 | 1.45 1.79 1.95 | 36 47 48 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-315 | 15 25 30 | 32.5 32 31.5 | 1450 | 4.92 5.58 6.43 | 27 39 40 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
80-50-315A | 13.5 22.5 27 | 25.8 25.2 24.5 | 1450 | 3.65 4.06 4.62 | 26 38 39 | 2.3 2.3 2.8 | 132S-4 4 | 132M-4 7.5 | 160M-4 11 |
80-50-315B | 12.8 21.3 25.6 | 23 22.5 22 | 1450 | 3.09 3.44 3.93 | 26 38 39 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-80-125 | 30 50 60 | 6 5 4.1 | 1450 | 0.88 1.02 1.05 | 56 67 64 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125A | 27.6 46 55.2 | 4.5 4.1 3.6 | 1450 | 0.62 0.78 0.86 | 55 66 63 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125B | 25.5 42.5 51 | 4 3.6 3.3 | 1450 | 0.50 0.63 0.73 | 55 66 63 | 2.5 2.5 3.0 | 802S-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
100-80-160 | 30 50 60 | 9.2 8.0 6.8 | 1450 | 1.32 1.68 1.83 | 57 65 61 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-80-160A | 27.5 46 55.2 | 7.1 6.5 5.8 | 1450 | 0.95 1.27 1.45 | 56 64 60 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
100-80-160B | 25.5 42.5 51 | 6.4 5.8 5.1 | 1450 | 0.79 1.05 1.18 | 56 64 60 | 2.5 2.5 3.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
100-65-200 | 30 50 60 | 13.5 12.5 11.8 | 1450 | 2.35 2.75 3.07 | 49 62 63 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-200A | 27.6 46 55.2 | 10.8 10.1 9.6 | 1450 | 1.69 2.07 2.33 | 48 61 62 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
100-65-200B | 25.5 42.5 51 | 9.6 9.0 8.5 | 1450 | 1.39 1.71 1.90 | 48 61 62 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-65-250 | 30 50 60 | 21.3 20 19 | 1450 | 3.78 4.62 5.10 | 46 59 61 | 2.3 2.3 2.8 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
100-65-250A | 27.6 46 55.2 | 16.8 16.3 15.9 | 1450 | 2.81 3.52 3.98 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132S-4 5.5 |
100-65-250B | 25.5 42.5 51 | 15 14.5 14 | 1450 | 2.31 2.89 3.24 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-315 | 30 50 60 | 34 32 30 | 1450 | 7.12 8.55 9.45 | 39 51 52 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
100-65-315A | 27.6 46 55.2 | 26 25.2 24.5 | 1450 | 5.14 6.31 7.22 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
100-65-315B | 25.5 42.5 51 | 23 22.5 22 | 1450 | 4.20 5.21 5.99 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-200 | 60 100 120 | 14.5 12.5 11.0 | 1450 | 4.40 5.01 5.36 | 54 68 67 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200A | 54 90 108 | 11.5 10.5 9.8 | 1450 | 3.19 3.84 4.37 | 53 67 66 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200B | 48 80 96 | 9.8 9.0 8.5 | 1450 | 2.42 2.93 3.37 | 53 67 66 | 2.8 2.8 3.5 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
125-100-250 | 60 100 120 | 21.3 20 19 | 1450 | 6.71 8.39 9.26 | 52 65 67 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-250A | 54 90 108 | 16.8 16.3 15.9 | 1450 | 4.84 6.24 7.08 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-250B | 48 80 96 | 15.0 14.5 14.0 | 1450 | 3.84 4.94 5.55 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 132S-4 5.5 | 160M-4 11 |
125-100-315 | 60 100 120 | 33.5 32 30.5 | 1450 | 12.2 14.5 16.3 | 45 60 61 | 2.5 2.5 3.0 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
125-100-315A | 54 90 108 | 27.1 25.9 24.7 | 1450 | 9.0 10.8 12.1 | 44 59 60 | 2.5 2.5 3.0 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
125-100-315B | 48 80 96 | 21.4 20.5 19.5 | 1450 | 6.5 7.7 8.6 | 43 58 59 | 2.5 2.5 3.0 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-400 | 60 100 120 | 52 50 48.5 | 1450 | 17.0 26.2 29.4 | 50 52 54 | 2.5 2.5 3.0 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
125-100-400A | 54 90 108 | 42.1 40.5 39.3 | 1450 | 12.4 19 21.4 | 50 52 54 | 2.5 2.5 3.0 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
125-100-400B | 48 80 96 | 33.3 32 31 | 1450 | 8.9 13.7 15.3 | 49 51 53 | 2.5 2.5 3.0 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250 | 120 200 240 | 24.8 20 15 | 1450 | 15.6 17.3 18.2 | 52 63 54 | 2.5 2.8 3.5 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250A | 108 180 216 | 20.1 16.2 12.2 | 1450 | 11.6 12.8 13.5 | 51 62 53 | 2.5 2.8 3.5 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
150-125-250B | 97.2 162 194 | 15.9 12.8 9.6 | 1450 | 8.3 9.1 9.6 | 51 62 53 | 2.5 2.8 3.5 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
150-125-315 | 120 200 240 | 36.3 32 28.5 | 1450 | 23.7 28.1 31.6 | 50 62 59 | 2.5 2.8 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
150-125-315A | 108 180 216 | 29.4 25.9 23.1 | 1450 | 17.3 20.5 23.0 | 50 62 59 | 2.5 2.8 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
150-125-315B | 97.2 162 194 | 23.2 20.5 18.3 | 1450 | 12.5 14.8 16.7 | 49 61 58 | 2.5 2.8 3.8 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-400 | 120 200 240 | 57.5 50 44 | 1450 | 40.0 48.6 58.7 | 47 56 49 | 2.0 2.8 3.5 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
150-125-400A | 108 180 216 | 46.6 40.5 35.6 | 1450 | 29.2 35.5 42.7 | 47 56 49 | 2.0 2.8 3.5 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
150-125-400B | 97.2 162 194 | 36.8 32 28.2 | 1450 | 20.7 25.2 35.4 | 47 56 49 | 2.0 2.8 3.5 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250 | 240 400 460 | 24.8 20 18 | 1450 | 28.9 32.5 38.8 | 56 67 58 | 2.8 3.2 3.8 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-250A | 216 360 414 | 20.1 16.2 14.6 | 1450 | 21.5 24.0 28.9 | 55 66 57 | 2.8 3.2 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250B | 192 320 368 | 15.9 12.8 11.6 | 1450 | 15.1 16.9 20.4 | 55 66 57 | 2.8 3.2 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
200-150-315 | 240 400 460 | 36.3 32 28.5 | 1450 | 43.1 52.0 54.9 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315A | 216 360 414 | 29.4 25.9 23.1 | 1450 | 31.4 37.9 40.0 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315B | 192 320 368 | 23.2 20.5 18.3 | 1450 | 22.5 27.0 28.7 | 54 66 64 | 3.0 3.5 4.0 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-400 | 240 400 460 | 56 50 46.5 | 1450 | 67.8 89.3 104.0 | 54 61 56 | 3.0 3.8 4.5 | 315S-4 110 | 315M-4 132 | 315L1-4 |
200-150-400A | 216 360 414 | 45.3 40.5 37.7 | 1450 | 49.4 65.1 75.9 | 54 61 56 | 3.0 3.8 4.5 | 280M-4 90 | 315S-4 110 | 315M-4 132 |
200-150-400B | 192 320 368 | 35.8 32 29.8 | 1450 | 34.7 45.7 53.3 | 54 61 56 | 3.0 3.8 4.5 | 280S-4 75 | 280M-4 90 | 315S-4 110 |
Magnetic pump is a kind of magnetic actuator (magnetic coupling) to achieve contactless torque transmission, so as to replace the dynamic seal with static seal, thus making the pump completely leak-free. As the pump shaft, the inner magnetic rotor is completely closed by the pump body and the shroud, thus eliminating the safety hazard of flammable, explosive, toxic and harmful media in the oil refining and chemical industry leaking through the pump seal.
Magnetic pump in the operation process to pay attention to the following points: ∶
1. Prevent particles from entering. Do not allow ferromagnetic impurities particles into the magnetic drive and bearing friction.
2. Flush in time after conveying media that are easy to crystallize or precipitate, in order to protect the service life of the sliding bearing.
3. When conveying media containing solid particles, filter at the inlet of the pump flow pipe.
4. Prevent demagnetization. The magnetic torque should not be designed too small.
5. Prevent dry friction.
