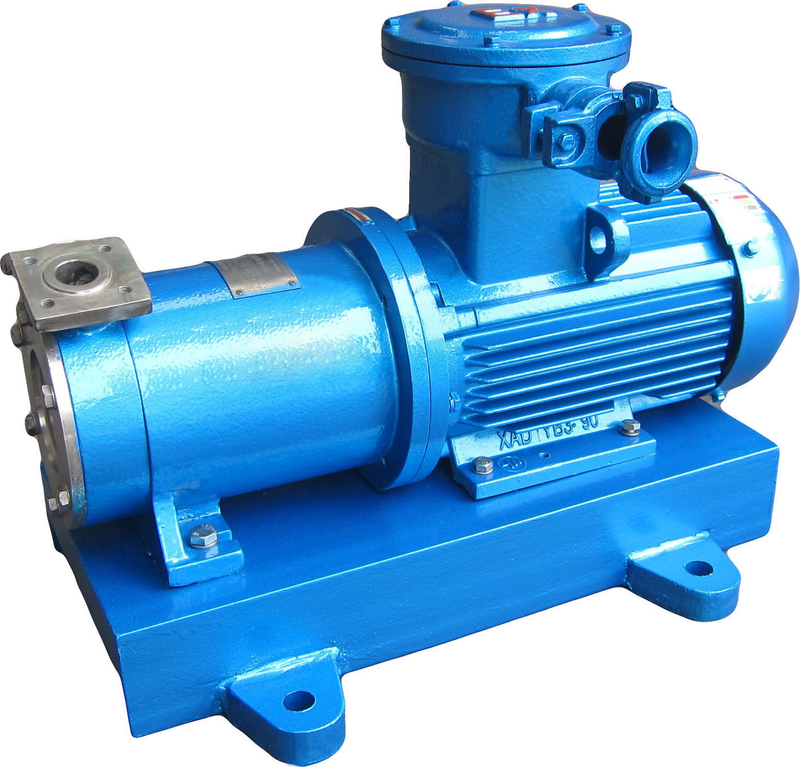

Industrial High-performance Precision Anti-leakage Metal Magnetic Eddy Pump for Chemical
Its Overflow components are made of 304, 316 316L, titanium, etc. The structure of pump is connecting directly.
Flow capacity: 0.2 -6.4m3/h
High lift: 18-130m
High temperature: 300 ℃
Pressure: 1.6MPa.
To transfer organic chemical medium.
anti-leakage metal magnetic pump for chemical
Its flow is small, but lift is large. To transfer high temperature medium, it is necessary to install shaft coupling. Its operating performance is improved by hydraulic model, Hastelloy isolation cover and polished impeller passage.
1.With our own technology of hydraulic model, metal magnetic pump's performance improves 3 % to 8 %, comparing to regular hydraulic model. This technology reaches an advanced world level.
2.The components for sliding bearing have a structure of double supporting and double-cover plate. Comparing to single-cover plate, this structure reduces the degree of pump body's deformation and make pump's operation safer and more reliable.
3.Sliding bearing, shaft sleeve and thrust bearing are pump's wearing parts. While being made of tungsten carbide, pump can operate stably for a long time. There is no need to replace these components. Only few manufacturers will apply these settings.
4.Isolation sets are made of Hastelloy which has low magnetic permeability. With Hastelloy stretch forming, isolation sets have better corrosion resistance, pressure resistance and deformation resistance than those of welding.
5.The company's original technology PEEK isolation sets with carbon fiber reinforced makes the metal magnetic pump without eddy current loss and achieves the same efficiency as the mechanical seal pump.
6.Impeller's channel is polished and grinded. This improves pump's performance by 3% to 12 %, comparing to unpolished. With this improvement, the cost of pumps can be recovered within 2 to 3 years.
The double protection anti-leakage metal magnetic pump can prevent the occurrence of safety accidents and reduce the responsibilities and losses of enterprises for environmental protection and safety.
CKW Performance Table
Type | Flow Rate m3/h | Head m | Rotational Speed r/min | Shaft Power kw | Motor Power kw | Efficiency % | Impeller Diameter mm | Remark |
CKW-20 | 0.36 | 28 | 2900 | 0.196 | 0.55 | 14 | 65 | |
0.7 | 20 | 0.178 | 22 | |||||
0.9 | 15 | 0.175 | 21 | |||||
CKW-30 | 1.73 | 52 | 2900 | 1.066 | 1.5 | 23 | 85 | |
2.88 | 30 | 0.735 | 32 | |||||
3.6 | 20 | 0.632 | 31 | |||||
CKW-40 | 3.6 | 60 | 2900 | 2.36 | 4 | 25 | 95 | |
5.4 | 40 | 1.73 | 34 | |||||
6.48 | 26 | 1.35 | 35 | |||||
CKW-75 | 1.73 | 115 | 2900 | 2.36 | 4 | 23 | 115 | |
2.88 | 75 | 1.96 | 30 | |||||
3.6 | 53 | 1.73 | 31.5 | |||||
CKW-105 | 2.05 | 130 | 2900 | 2.86 | 3 | 25.5 | 130 | |
2.4 | 110 | 2.46 | 29 | |||||
2.88 | 85 | 2.11 | 31.5 | |||||
CKW-18 | 0.2 | 18 | 2900 | 0.08 | 0.18 | 12 | 75 | Non-metal |
CKW-26Z | 1.44 | 26 | 1400 | 0.81 | 1.5 | 26 | 80 | |
CKW-65 | 0.72 | 65 | 2900 | 0.85 | 1.5 | 15 | 105 |
