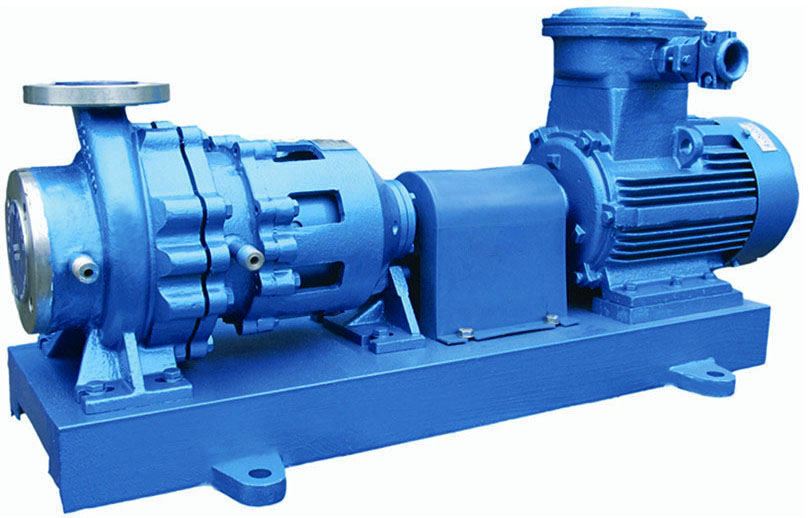

Pump's design conforms to ISO2858. Overflow components of the pump are made of 304, 316, 316L, Titanium, etc.
Flow capacity: 1.8-400 m3/h
Lift: 15-125m
Highest temperature: 400℃
Pressure: 1.6 MPa.
To transfer chemical medium and acid medium.
Structure of suspension type. Support point of sliding bearing, load torque and torsion are in distance piece of joint. Because of the shield and coupling on the pump, it does not need to remove the motor and pipes when maintain the pump, it just needs to uninstall coupling, distance piece and bolts.
With the same installation size of IS and IH centrifugal pump, it is compatible and interchangeable. Sliding bearing, shaft sleeve and thrust bearing are much bigger, safe and reliable.
Shroud of IMC chemical process pump using cross section of stainless steel, Hastelloy alloys, PEEK enhanced by carbide fiber and so on. It improved the efficiency on transmission of magnetic.
With advanced hydraulic model, the isolation sets are made of Hastelloy and titanium alloys, which improved pumps' performance 8% to 12%.
The wearing parts of the electro magnetic drive pump are sliding bearing, shaft sleeve and thrust bearing when working. With more wear-resisting, lubricity, higher hardness of tungsten carbide used on wearing parts, it makes the pump working in continuous operation condition.
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
25-20-125 | 1.8 2.5 3.3 | 20.6 20 18 | 2800 | 0.56 0.57 0.70 | 18 24 23 | 2.0 2.0 2.5 | 80S-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
25-20-160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 1.09 1.10 1.3 | 15 19 20 | 2.0 2.0 2.5 | 90S-2 1.5 | 90L-2 2.2 | 100L-2 3 |
32-25-110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.4 0.45 0.54 | 30 36 35 | 2.0 2.0 2.5 | 801-2 0.75 | 802-2 1.1 | 90S-2 1.5 |
32-25-125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.65 0.72 0.87 | 24 30 29 | 2.0 2.0 2.5 | 802-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 2900 | 4.28 4.86 5.16 | 25 35 38 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-125 | 15 25 30 | 22 20 18.5 | 2900 | 1.96 2.31 2.47 | 46 59 61 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-50-125A | 13.5 22.5 27 | 18 16.2 14.5 | 2900 | 1.47 1.71 1.77 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-125B | 12.8 21.3 25.6 | 16.5 14.5 13 | 2900 | 1.24 1.45 1.51 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-160 | 15 25 30 | 35 32 30 | 2900 | 3.25 3.96 4.38 | 44 55 56 | 2.0 2.0 2.5 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-160A | 13.5 22.5 27 | 28.5 26 24 | 2900 | 2.44 3.12 3.39 | 43 51 52 | 2.0 2.0 2.5 | 112M-2 4 | 132S1-2 5.5 | 132S2-2 7.5 |
65-50-160B | 12.8 21.3 25.6 | 25.5 23.1 21.0 | 2900 | 2.12 2.68 2.87 | 42 50 51 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-40-200 | 15 25 30 | 53 50 47 | 2900 | 6.02 7.09 7.83 | 36 48 49 | 2.0 2.0 2.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
65-40-200A | 13.5 22.5 27 | 43 40.5 37.5 | 2900 | 4.52 5.39 5.87 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
65-40-200B | 12.8 21.3 25.6 | 38.5 36 34.5 | 2900 | 3.84 4.54 5.11 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
65-40-250 | 15 25 30 | 82 80 78.5 | 2900 | 12.42 13.96 15.64 | 27 39 41 | 2.0 2.0 2.5 | 160L-2 18.5 | 180M-2 22 | 200L-2 30 |
65-40-250A | 13.5 22.5 27 | 67 65 63.5 | 2900 | 9.47 10.48 11.67 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160L-2 18.5 | 180M-2 22 |
65-40-250B | 12.8 21.3 25.6 | 59.8 57.8 56.3 | 2900 | 8.03 8.83 9.81 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160M2-2 15 | 160L-2 18.5 |
65-40-315 | 15 25 30 | 127 125 123 | 2900 | 27.33 27.44 30.44 | 19 31 33 | 2.4 2.4 3.0 | 200L2-2 37 | 225M-2 45 | 280S-2 75 |
65-40-315A | 13.5 22.5 27 | 103 101 98 | 2900 | 18.93 20.63 22.52 | 20 30 32 | 2.4 2.4 3.0 | 200L1-2 30 | 200L1-2 30 | 225M-2 45 |
65-40-315B | 12.8 21.3 25.6 | 92 90 88 | 2900 | 16.05 17.41 19.17 | 20 30 32 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-65-125 | 30 50 60 | 22.5 20 18 | 2900 | 3.40 4.19 4.60 | 54 65 64 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
80-65-125A | 27.6 46 55.2 | 18.5 16.2 14 | 2900 | 2.68 3.22 3.39 | 52 63 62 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S1-2 5.5 | 132S2-2 7.5 |
80-65-125B | 25.5 42.5 51 | 16.5 14.5 12.5 | 2900 | 2.20 2.66 2.80 | 52 63 62 | 2.4 2.4 3.0 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
80-65-160 | 30 50 60 | 34 32 29 | 2900 | 5.55 7.03 7.78 | 50 62 61 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-65-160A | 27.6 46 55.2 | 28.5 26 23 | 2900 | 4.56 5.52 5.96 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
80-65-160B | 25.5 42.5 51 | 25.5 23.1 20.0 | 2900 | 3.77 4.53 4.79 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
80-50-200 | 30 50 60 | 53 50 47 | 2900 | 9.84 11.75 12.84 | 44 58 60 | 2.4 2.4 3.0 | 160M2-2 15 | 160L-2 18.5 | 200L1-2 30 |
80-50-200A | 27.6 46 55.2 | 43 40.5 37.5 | 2900 | 7.52 8.90 9.55 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
80-50-200B | 25.5 42.5 51 | 39 36 33 | 2900 | 6.30 7.31 7.73 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-50-250 | 30 50 60 | 84 80 75 | 2900 | 17.15 21.38 23.61 | 40 51 52 | 2.4 2.4 3.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
80-50-250A | 27.5 46 55.2 | 69 65 60 | 2900 | 12.97 16.29 17.68 | 40 50 51 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-50-250B | 25.5 42.5 51 | 61.8 57.8 52.8 | 2900 | 10.72 13.38 14.38 | 40 50 51 | 2.4 2.4 3.0 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
80-50-315 | 30 50 60 | 128 125 123 | 2900 | 36.05 40.56 44.75 | 29 42 45 | 2.4 2.4 3.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
80-50-315A | 27.6 46 55.2 | 103 101 98 | 2900 | 27.39 30.67 33.47 | 28 41 44 | 2.4 2.4 3.0 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
80-50-315B | 25.5 42.5 51 | 92 90 88 | 2900 | 20.81 25.42 27.78 | 28 41 44 | 2.4 2.4 3.0 | 200L1-2 30 | 225M-2 45 | 225M-2 45 |
100-80-125 | 60 100 120 | 23 20 16.5 | 2900 | 6.49 7.90 8.29 | 58 69 65 | 3.2 3.2 4.5 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
100-80-125A | 54 90 108 | 19.2 16.2 12.9 | 2900 | 4.95 5.84 5.93 | 57 68 64 | 3.2 3.2 4.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
100-80-125B | 48 80 96 | 17.5 14.5 11 | 2900 | 4.08 4.71 4.57 | 56 67 63 | 3.2 3.2 4.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160 | 60 100 120 | 35 32 28 | 2900 | 10.32 13.02 14.28 | 56 67 64 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-80-160A | 54 90 108 | 29 26 22 | 2900 | 7.75 9.66 10.27 | 55 60 63 | 3.2 3.2 4.5 | 160M2-2 15 | 160M2-2 15 | 180M-2 22 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
100-65-200A | 54 90 108 | 44.5 40.5 37.5 | 2900 | 14.71 16.01 17.5 | 51 62 63 | 3.2 3.2 4.5 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
100-65-200B | 48 80 96 | 40 36 33 | 2900 | 10.46 12.86 13.88 | 50 61 62 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-65-250 | 60 100 120 | 86 80 74.5 | 2900 | 28.16 35.74 39.26 | 50 61 62 | 3.2 3.2 4.5 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
100-65-250A | 54 90 108 | 71 65 59 | 2900 | 20.88 26.12 28.0 | 50 61 62 | 3.2 3.2 4.5 | 200L2-2 37 | 225M-2 45 | 250M-2 55 |
100-65-250B | 48 80 96 | 63.8 57.8 52 | 2900 | 17.02 20.99 22.29 | 49 60 61 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
100-65-315 | 60 100 120 | 132 125 118 | 2900 | 50.26 63.09 70.11 | 43 54 55 | 3.2 3.2 4.5 | 280S-2 75 | 315S-2 110 | 315M-2 132 |
100-65-315A | 54 90 108 | 108 101 94 | 2900 | 38.74 47.61 52.16 | 41 52 53 | 3.2 3.2 4.5 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
100-65-315B | 48 80 96 | 97 90 83 | 2900 | 30.92 37.70 40.95 | 41 52 53 | 3.2 3.2 4.5 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-200 | 120 200 240 | 54 50 47 | 2900 | 34.16 39.47 42.79 | 55 69 68 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
125-100-200A | 108 180 216 | 48 40.5 35 | 2900 | 26.14 29.20 30.73 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 250M-2 55 | 280S-2 75 |
125-100-200B | 90 150 180 | 43 36 30.5 | 2900 | 19.52 22.31 24.50 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 200L2-2 37 | 250M-2 55 |
125-100-250 | 120 200 240 | 87 80 74.5 | 2900 | 52.65 66.02 72.68 | 54 66 67 | 4.5 4.5 5.0 | 280S-2 75 | 315S-2 110 | 315L1-2 160 |
125-100-250A | 108 180 216 | 72 65 59.5 | 2900 | 39.96 49.02 53.03 | 53 65 66 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
125-100-250B | 90 150 180 | 64.8 57.8 54 | 2900 | 29.97 41.15 42 | 53 65 66 | 4.5 4.5 5.0 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-315 | 120 200 240 | 132.5 125 120 | 2900 | 80.2 104 118 | 54 65 66 | 4.5 4.5 5.0 | 315M-2 132 | 315M-2 132 | 315L1-2 160 |
125-100-315A | 108 180 216 | 107.3 101.3 97.2 | 2900 | 59.5 78.8 90.7 | 53 63 63 | 4.5 4.5 5.0 | 315S-2 110 | 315M-2 132 | 315L1-2 160 |
125-100-315B | 96 160 192 | 84.8 80 76.8 | 2900 | 41.8 56.2 64.8 | 53 62 62 | 4.5 4.5 5.0 | 280M-2 90 | 315S-2 110 | 315M-2 132 |
Magnetic pump is a kind of magnetic actuator (magnetic coupling) to achieve contactless torque transmission, so as to replace the dynamic seal with static seal, so that the pump to achieve a completely leak-free. As the pump shaft, the inner magnetic rotor is completely enclosed by the pump body and the isolation sleeve, thus completely solving the problem of "running, bubbling, dripping, leaking" and eliminating the safety hazard of flammable, explosive, toxic and harmful media leaking through the pump in the oil refining and chemical industry.
1. Prevent particles from entering. Do not allow ferromagnetic impurities particles into the magnetic drive and bearing friction.
2. To flush in time after conveying the medium that is easy to crystallize or precipitate.
3. When conveying media containing solid particles, filter at the inlet of the pump flow pipe.
4. Prevent demagnetization.
5. It should be operated under the specified temperature conditions, and it is strictly forbidden to exceed the temperature of the medium.
Pump's design conforms to ISO2858. Overflow components of the pump are made of 304, 316, 316L, Titanium, etc.
Flow capacity: 1.8-400 m3/h
Lift: 15-125m
Highest temperature: 400℃
Pressure: 1.6 MPa.
To transfer chemical medium and acid medium.
Structure of suspension type. Support point of sliding bearing, load torque and torsion are in distance piece of joint. Because of the shield and coupling on the pump, it does not need to remove the motor and pipes when maintain the pump, it just needs to uninstall coupling, distance piece and bolts.
With the same installation size of IS and IH centrifugal pump, it is compatible and interchangeable. Sliding bearing, shaft sleeve and thrust bearing are much bigger, safe and reliable.
Shroud of IMC chemical process pump using cross section of stainless steel, Hastelloy alloys, PEEK enhanced by carbide fiber and so on. It improved the efficiency on transmission of magnetic.
With advanced hydraulic model, the isolation sets are made of Hastelloy and titanium alloys, which improved pumps' performance 8% to 12%.
The wearing parts of the electro magnetic drive pump are sliding bearing, shaft sleeve and thrust bearing when working. With more wear-resisting, lubricity, higher hardness of tungsten carbide used on wearing parts, it makes the pump working in continuous operation condition.
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
25-20-125 | 1.8 2.5 3.3 | 20.6 20 18 | 2800 | 0.56 0.57 0.70 | 18 24 23 | 2.0 2.0 2.5 | 80S-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
25-20-160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 1.09 1.10 1.3 | 15 19 20 | 2.0 2.0 2.5 | 90S-2 1.5 | 90L-2 2.2 | 100L-2 3 |
32-25-110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.4 0.45 0.54 | 30 36 35 | 2.0 2.0 2.5 | 801-2 0.75 | 802-2 1.1 | 90S-2 1.5 |
32-25-125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.65 0.72 0.87 | 24 30 29 | 2.0 2.0 2.5 | 802-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 2900 | 4.28 4.86 5.16 | 25 35 38 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-125 | 15 25 30 | 22 20 18.5 | 2900 | 1.96 2.31 2.47 | 46 59 61 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-50-125A | 13.5 22.5 27 | 18 16.2 14.5 | 2900 | 1.47 1.71 1.77 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-125B | 12.8 21.3 25.6 | 16.5 14.5 13 | 2900 | 1.24 1.45 1.51 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-160 | 15 25 30 | 35 32 30 | 2900 | 3.25 3.96 4.38 | 44 55 56 | 2.0 2.0 2.5 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-160A | 13.5 22.5 27 | 28.5 26 24 | 2900 | 2.44 3.12 3.39 | 43 51 52 | 2.0 2.0 2.5 | 112M-2 4 | 132S1-2 5.5 | 132S2-2 7.5 |
65-50-160B | 12.8 21.3 25.6 | 25.5 23.1 21.0 | 2900 | 2.12 2.68 2.87 | 42 50 51 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-40-200 | 15 25 30 | 53 50 47 | 2900 | 6.02 7.09 7.83 | 36 48 49 | 2.0 2.0 2.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
65-40-200A | 13.5 22.5 27 | 43 40.5 37.5 | 2900 | 4.52 5.39 5.87 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
65-40-200B | 12.8 21.3 25.6 | 38.5 36 34.5 | 2900 | 3.84 4.54 5.11 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
65-40-250 | 15 25 30 | 82 80 78.5 | 2900 | 12.42 13.96 15.64 | 27 39 41 | 2.0 2.0 2.5 | 160L-2 18.5 | 180M-2 22 | 200L-2 30 |
65-40-250A | 13.5 22.5 27 | 67 65 63.5 | 2900 | 9.47 10.48 11.67 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160L-2 18.5 | 180M-2 22 |
65-40-250B | 12.8 21.3 25.6 | 59.8 57.8 56.3 | 2900 | 8.03 8.83 9.81 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160M2-2 15 | 160L-2 18.5 |
65-40-315 | 15 25 30 | 127 125 123 | 2900 | 27.33 27.44 30.44 | 19 31 33 | 2.4 2.4 3.0 | 200L2-2 37 | 225M-2 45 | 280S-2 75 |
65-40-315A | 13.5 22.5 27 | 103 101 98 | 2900 | 18.93 20.63 22.52 | 20 30 32 | 2.4 2.4 3.0 | 200L1-2 30 | 200L1-2 30 | 225M-2 45 |
65-40-315B | 12.8 21.3 25.6 | 92 90 88 | 2900 | 16.05 17.41 19.17 | 20 30 32 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-65-125 | 30 50 60 | 22.5 20 18 | 2900 | 3.40 4.19 4.60 | 54 65 64 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
80-65-125A | 27.6 46 55.2 | 18.5 16.2 14 | 2900 | 2.68 3.22 3.39 | 52 63 62 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S1-2 5.5 | 132S2-2 7.5 |
80-65-125B | 25.5 42.5 51 | 16.5 14.5 12.5 | 2900 | 2.20 2.66 2.80 | 52 63 62 | 2.4 2.4 3.0 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
80-65-160 | 30 50 60 | 34 32 29 | 2900 | 5.55 7.03 7.78 | 50 62 61 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-65-160A | 27.6 46 55.2 | 28.5 26 23 | 2900 | 4.56 5.52 5.96 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
80-65-160B | 25.5 42.5 51 | 25.5 23.1 20.0 | 2900 | 3.77 4.53 4.79 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
80-50-200 | 30 50 60 | 53 50 47 | 2900 | 9.84 11.75 12.84 | 44 58 60 | 2.4 2.4 3.0 | 160M2-2 15 | 160L-2 18.5 | 200L1-2 30 |
80-50-200A | 27.6 46 55.2 | 43 40.5 37.5 | 2900 | 7.52 8.90 9.55 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
80-50-200B | 25.5 42.5 51 | 39 36 33 | 2900 | 6.30 7.31 7.73 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-50-250 | 30 50 60 | 84 80 75 | 2900 | 17.15 21.38 23.61 | 40 51 52 | 2.4 2.4 3.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
80-50-250A | 27.5 46 55.2 | 69 65 60 | 2900 | 12.97 16.29 17.68 | 40 50 51 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-50-250B | 25.5 42.5 51 | 61.8 57.8 52.8 | 2900 | 10.72 13.38 14.38 | 40 50 51 | 2.4 2.4 3.0 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
80-50-315 | 30 50 60 | 128 125 123 | 2900 | 36.05 40.56 44.75 | 29 42 45 | 2.4 2.4 3.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
80-50-315A | 27.6 46 55.2 | 103 101 98 | 2900 | 27.39 30.67 33.47 | 28 41 44 | 2.4 2.4 3.0 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
80-50-315B | 25.5 42.5 51 | 92 90 88 | 2900 | 20.81 25.42 27.78 | 28 41 44 | 2.4 2.4 3.0 | 200L1-2 30 | 225M-2 45 | 225M-2 45 |
100-80-125 | 60 100 120 | 23 20 16.5 | 2900 | 6.49 7.90 8.29 | 58 69 65 | 3.2 3.2 4.5 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
100-80-125A | 54 90 108 | 19.2 16.2 12.9 | 2900 | 4.95 5.84 5.93 | 57 68 64 | 3.2 3.2 4.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
100-80-125B | 48 80 96 | 17.5 14.5 11 | 2900 | 4.08 4.71 4.57 | 56 67 63 | 3.2 3.2 4.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160 | 60 100 120 | 35 32 28 | 2900 | 10.32 13.02 14.28 | 56 67 64 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-80-160A | 54 90 108 | 29 26 22 | 2900 | 7.75 9.66 10.27 | 55 60 63 | 3.2 3.2 4.5 | 160M2-2 15 | 160M2-2 15 | 180M-2 22 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
100-65-200A | 54 90 108 | 44.5 40.5 37.5 | 2900 | 14.71 16.01 17.5 | 51 62 63 | 3.2 3.2 4.5 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
100-65-200B | 48 80 96 | 40 36 33 | 2900 | 10.46 12.86 13.88 | 50 61 62 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-65-250 | 60 100 120 | 86 80 74.5 | 2900 | 28.16 35.74 39.26 | 50 61 62 | 3.2 3.2 4.5 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
100-65-250A | 54 90 108 | 71 65 59 | 2900 | 20.88 26.12 28.0 | 50 61 62 | 3.2 3.2 4.5 | 200L2-2 37 | 225M-2 45 | 250M-2 55 |
100-65-250B | 48 80 96 | 63.8 57.8 52 | 2900 | 17.02 20.99 22.29 | 49 60 61 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
100-65-315 | 60 100 120 | 132 125 118 | 2900 | 50.26 63.09 70.11 | 43 54 55 | 3.2 3.2 4.5 | 280S-2 75 | 315S-2 110 | 315M-2 132 |
100-65-315A | 54 90 108 | 108 101 94 | 2900 | 38.74 47.61 52.16 | 41 52 53 | 3.2 3.2 4.5 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
100-65-315B | 48 80 96 | 97 90 83 | 2900 | 30.92 37.70 40.95 | 41 52 53 | 3.2 3.2 4.5 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-200 | 120 200 240 | 54 50 47 | 2900 | 34.16 39.47 42.79 | 55 69 68 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
125-100-200A | 108 180 216 | 48 40.5 35 | 2900 | 26.14 29.20 30.73 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 250M-2 55 | 280S-2 75 |
125-100-200B | 90 150 180 | 43 36 30.5 | 2900 | 19.52 22.31 24.50 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 200L2-2 37 | 250M-2 55 |
125-100-250 | 120 200 240 | 87 80 74.5 | 2900 | 52.65 66.02 72.68 | 54 66 67 | 4.5 4.5 5.0 | 280S-2 75 | 315S-2 110 | 315L1-2 160 |
125-100-250A | 108 180 216 | 72 65 59.5 | 2900 | 39.96 49.02 53.03 | 53 65 66 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
125-100-250B | 90 150 180 | 64.8 57.8 54 | 2900 | 29.97 41.15 42 | 53 65 66 | 4.5 4.5 5.0 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-315 | 120 200 240 | 132.5 125 120 | 2900 | 80.2 104 118 | 54 65 66 | 4.5 4.5 5.0 | 315M-2 132 | 315M-2 132 | 315L1-2 160 |
125-100-315A | 108 180 216 | 107.3 101.3 97.2 | 2900 | 59.5 78.8 90.7 | 53 63 63 | 4.5 4.5 5.0 | 315S-2 110 | 315M-2 132 | 315L1-2 160 |
125-100-315B | 96 160 192 | 84.8 80 76.8 | 2900 | 41.8 56.2 64.8 | 53 62 62 | 4.5 4.5 5.0 | 280M-2 90 | 315S-2 110 | 315M-2 132 |
Magnetic pump is a kind of magnetic actuator (magnetic coupling) to achieve contactless torque transmission, so as to replace the dynamic seal with static seal, so that the pump to achieve a completely leak-free. As the pump shaft, the inner magnetic rotor is completely enclosed by the pump body and the isolation sleeve, thus completely solving the problem of "running, bubbling, dripping, leaking" and eliminating the safety hazard of flammable, explosive, toxic and harmful media leaking through the pump in the oil refining and chemical industry.
1. Prevent particles from entering. Do not allow ferromagnetic impurities particles into the magnetic drive and bearing friction.
2. To flush in time after conveying the medium that is easy to crystallize or precipitate.
3. When conveying media containing solid particles, filter at the inlet of the pump flow pipe.
4. Prevent demagnetization.
5. It should be operated under the specified temperature conditions, and it is strictly forbidden to exceed the temperature of the medium.
