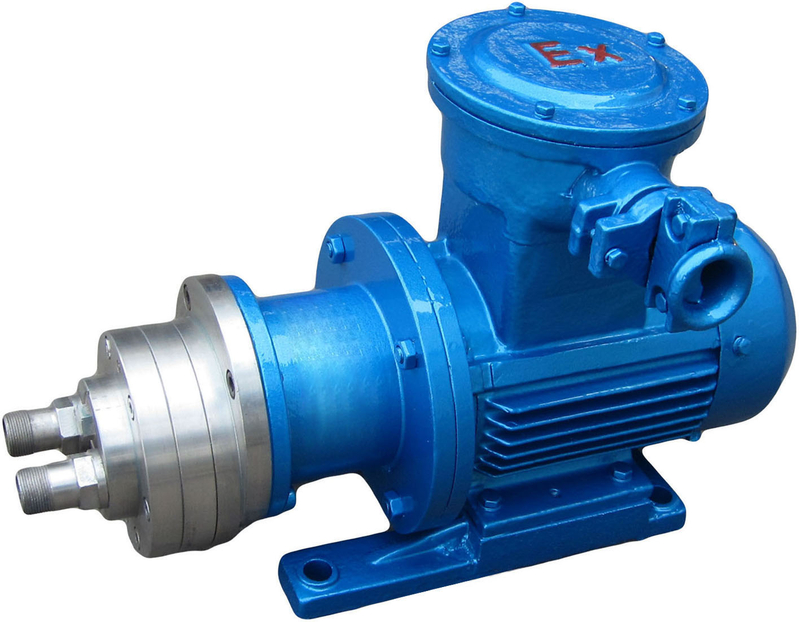

Overflow components of the pump are made of 304, 316, 316L, Titanium, etc. The structure of pump is connecting directly.
Flow capacity: 0.37 - 3m3/h
High lift: 20-60m
Highest temperature: 300 ℃
Pressure: 1.6MPa.
To transfer organic chemical medium with large viscidity and acid medium.
Magnetic pumps are capable to transfer all kinds of chemical liquid without leakage and are widely applied in many industries. They are resolutions for environment protection, safety, labor protection, clean production and energy saving, according to national laws and regulations.
Pump's flow is small, but lift is large. To transfer high temperature medium, a shaft coupling is needed. The operating performance is improved by hydraulic model, Hastelloy isolation cover and polished Impeller passage.
1) With our own technology of hydraulic model, pump's performance improves 3 % to 8 %.
2) Pump's body which supporting sliding bearing has a structure of double supporting and double-cover plate.
3) Power saving.
4) Has excellent corrosion resistance and high temperature resistance.
Performance Parameter Table | ||||||||
Type | Flow Rate m3/h | Pressure Mpa | Height Permitted m | Motor Type | Power kw | Rotational Speed r/min | Operating Temperature ℃ | Weight kg |
CSH-2 | 0.037 | 0.2 | Self-priming 3 | JW5614 | 0.09 | 1450 | <50 | 15 |
CSH-4 | 1 | 0.4 | Self-priming 4 | Y80 | 0.55 | 1400 | <50 | 20 |
CSH-6 | 3 | 0.6 | Self-priming 4 | Y90L | 1.5 | 1400 | <50 | 35 |
1. To prevent residual impurities from entering the pump chamber, the piping needs to be purged.
2. No-load operation is strictly prohibited.
3. The inlet and outlet piping must be matched with the pump's inlet and outlet diameters in accordance with the standard.
4. The magnetic pump must be used within the range of flow and head points specified in the catalogue.
