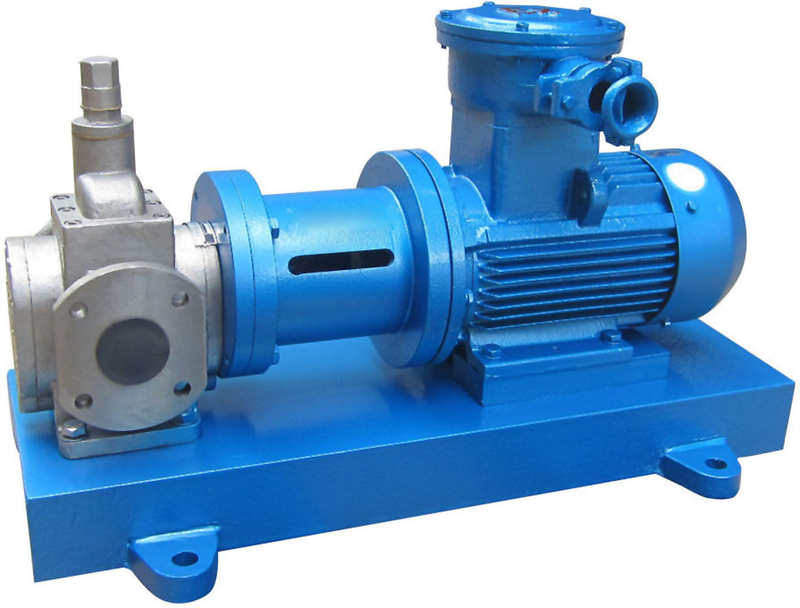

Pump's overflow components are made of 304, 316 316L, Titanium, etc. The structure of pump is connecting directly.
Flow capacity: 0.6-40m3 /h
High lift: 60m
Highest temperature: 300 ℃,
Pressure: 1.6MPa.
To transfer organic chemical medium with large viscidity.
This pump features a small flow rate but a substantial lift, making it well-suited for transferring high-temperature media. To facilitate this, the design incorporates a shaft coupling.
The pump's performance is further enhanced through several key design elements:
Hydraulic Model: The use of an advanced hydraulic model, developed in-house, improves the pump's performance by 3-8% compared to regular hydraulic models.
Hastelloy Isolation Cover: The Hastelloy isolation cover ensures superior chemical compatibility and prevents leakage.
Polished Impeller Passage: The polished impeller passage optimizes fluid flow, contributing to improved operating efficiency.
Additionally, the pump's sliding bearing assembly features a double-support, double-cover plate structure. This design reduces deformation in the pump body, resulting in safer and more reliable operation compared to single-cover plate configurations.
These innovative design choices, including the custom hydraulic model, chemical-resistant materials, and optimized fluid path, work together to enhance the overall performance and dependability of this specialty pump.
3.Sliding bearing, shaft sleeve, thrust bearing are chemical no leakage magnetic drive pump's wearing parts. While being made of tungsten carbide, pump can operate stably for a long time.
4.Isolation sets are made of Hastelloy which has low magnetic permeability. With Hastelloy stretch forming, isolation sets have better corrosion resistance, pressure resistance and deformation resistance than those of welding.
5.The company's original technology PEEK isolation sets with carbon fiber reinforced makes the metal magnetic pump without eddy current loss and achieves the same efficiency as the mechanical seal pump.
6.Impeller's channel is polished and grinded. This improves pump's performance by 3% to 12 %, comparing to unpolished. With this improvement, the cost of pumps can be recovered within 2 to 3 years.
Model | Flow Capacity m3/h | Lift Capacity m | Pressure MPa | Height Permitted m | Inlet/Outlet Diameter mm | Efficiency % | Rotational Speed r/min | Power kw |
CSL 0.6/0.6 | 0.6 | 10 | 0.6 | 3 | DN25 | 32 | 910 | 0.75 |
CSL 1.0/0.6 | 1 | 16.7 | 0.6 | 3 | DN25 | 32 | 1390 | 0.75 |
CSL 1.6/0.6 | 1.6 | 26.7 | 0.6 | 3 | DN32 | 42 | 910 | 0.75 |
CSL 2.5/0.6 | 2.5 | 42 | 0.6 | 3 | DN32 | 42 | 1400 | 1.1 |
CSL 3.3/0.6 | 3.3 | 55 | 0.6 | 3 | DN40 | 60 | 940 | 1.5 |
CSL 4/0.6 | 4 | 66 | 0.6 | 3 | DN50 | 60 | 940 | 1.5 |
CSL 5/0.6 | 5 | 83.3 | 0.6 | 3 | DN40 | 60 | 1420 | 2.2 |
CSL 6/0.6 | 6 | 100 | 0.6 | 3 | DN50 | 60 | 1420 | 2.2 |
CSL 8/0.6 | 8 | 133 | 0.6 | 3 | DN65 | 60 | 960 | 3 |
CSL 10/0.6 | 10 | 167 | 0.6 | 3 | DN65 | 60 | 960 | 4 |
CSL 12/0.6 | 12 | 200 | 0.6 | 3 | DN65 | 61 | 1440 | 5.5 |
CSL 15/0.6 | 15 | 250 | 0.6 | 3 | DN65 | 61 | 1440 | 5.5 |
CSL 20/0.6 | 20 | 333 | 0.6 | 3 | DN80 | 68 | 970 | 7.5 |
CSL 25/0.6 | 25 | 420 | 0.6 | 3 | DN80 | 69 | 970 | 11 |
CSL 30/0.6 | 30 | 500 | 0.6 | 3 | DN100 | 70 | 970 | 11 |
CSL 40/0.6 | 40 | 660 | 0.6 | 3 | DN125 | 72 | 970 | 15 |
For our company's metal magnetic pumps, the wearing parts are made of tungsten carbide which has the same abrasive resistance as silicon carbide, while its bending strength is 3 times stronger.
