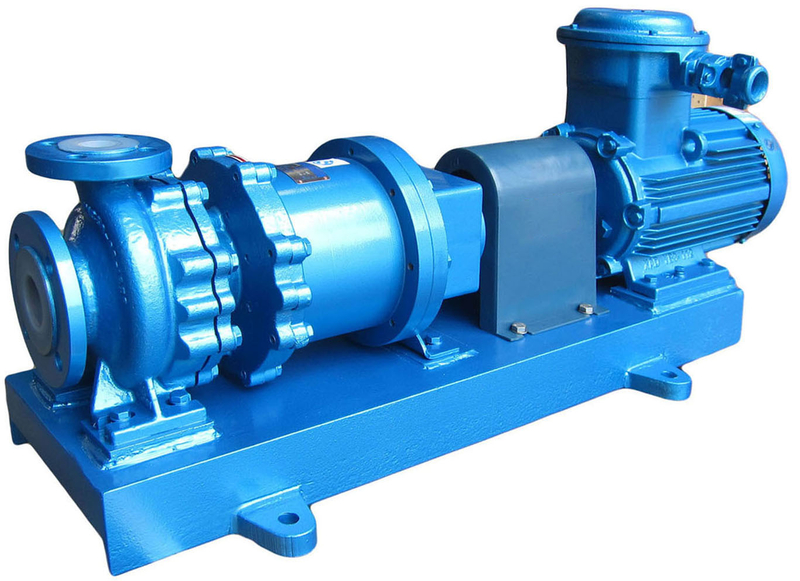

National patent product (plastic magnetic driving pump, ZL200410000791.4).
The design standard conforms to ISO2858. The overflow component has a structure of steel-plastic compound. There is shaft coupling in the pump. When repairing, only the shaft coupling needs to be removed without moving the pipeline or motor.
Flow rate: 1.8-100m3/h
Head: 15-80m
The highest operating temperature is 180℃, and the pressure is 1.0 MPa.
It can transport hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid, organic-inorganic mixed acid, etc.
Structure type: suspension
When conveying high-temperature media, there is no need to bring a cooling box.
1) With our own technology of hydraulic model, centrifugal magnetic pump's performance improves 3% to 8%.
2) Pump's body which supporting sliding bearing has a structure of double supporting and double-cover plate. This reduces the degree of pump body's deformation and make pump's operation safer and more reliable.
3) The surface of the coupled magnetic pump casing and the joint is lined with dovetail grooves, lined with various fluorine resins and polymer plastics. The pump shaft, impeller, isolating sleeve and inner magnetic steel components are made of reinforced carbon fiber and PEEK. These enhance the plastic layer's intensity, temperature resistance, abrasion resistance, preventing steel and plastic from peeling off.
4) The isolation sets are made of fluoroplastic with carbon reinforced fiber and PEEK. Comparing to single resin, isolation sets have better corrosion resistance, pressure resistance and deformation resistance. This prevents the magnetic pump from damaging by the friction between inner magnetic steel an isolation set.
5) Pump's flow components are made of steel-plastic compound with reinforced carbon fiber.
Flow-passage parts with steel-plastic composite and carbon reinforced fiber are an International advanced technology.
It can be designed as the double protection anti-leakage magnetic pump. It can prevent the occurrence of safety accidents.
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
25-20-125 | 1.8 2.5 3.3 | 20.6 20 18 | 2800 | 0.56 0.57 0.70 | 18 24 23 | 2.0 2.0 2.5 | 80S-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
25-20-160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 1.09 1.10 1.3 | 15 19 20 | 2.0 2.0 2.5 | 90S-2 1.5 | 90L-2 2.2 | 100L-2 3 |
32-25-110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.4 0.45 0.54 | 30 36 35 | 2.0 2.0 2.5 | 801-2 0.75 | 802-2 1.1 | 90S-2 1.5 |
32-25-125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.65 0.72 0.87 | 24 30 29 | 2.0 2.0 2.5 | 802-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 2900 | 4.28 4.86 5.16 | 25 35 38 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-125 | 15 25 30 | 22 20 18.5 | 2900 | 1.96 2.31 2.47 | 46 59 61 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-50-125A | 13.5 22.5 27 | 18 16.2 14.5 | 2900 | 1.47 1.71 1.77 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-125B | 12.8 21.3 25.6 | 16.5 14.5 13 | 2900 | 1.24 1.45 1.51 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-160 | 15 25 30 | 35 32 30 | 2900 | 3.25 3.96 4.38 | 44 55 56 | 2.0 2.0 2.5 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-160A | 13.5 22.5 27 | 28.5 26 24 | 2900 | 2.44 3.12 3.39 | 43 51 52 | 2.0 2.0 2.5 | 112M-2 4 | 132S1-2 5.5 | 132S2-2 7.5 |
65-50-160B | 12.8 21.3 25.6 | 25.5 23.1 21.0 | 2900 | 2.12 2.68 2.87 | 42 50 51 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-40-200 | 15 25 30 | 53 50 47 | 2900 | 6.02 7.09 7.83 | 36 48 49 | 2.0 2.0 2.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
65-40-200A | 13.5 22.5 27 | 43 40.5 37.5 | 2900 | 4.52 5.39 5.87 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
65-40-200B | 12.8 21.3 25.6 | 38.5 36 34.5 | 2900 | 3.84 4.54 5.11 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
65-40-250 | 15 25 30 | 82 80 78.5 | 2900 | 12.42 13.96 15.64 | 27 39 41 | 2.0 2.0 2.5 | 160L-2 18.5 | 180M-2 22 | 200L-2 30 |
65-40-250A | 13.5 22.5 27 | 67 65 63.5 | 2900 | 9.47 10.48 11.67 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160L-2 18.5 | 180M-2 22 |
65-40-250B | 12.8 21.3 25.6 | 59.8 57.8 56.3 | 2900 | 8.03 8.83 9.81 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160M2-2 15 | 160L-2 18.5 |
65-40-315 | 15 25 30 | 127 125 123 | 2900 | 27.33 27.44 30.44 | 19 31 33 | 2.4 2.4 3.0 | 200L2-2 37 | 225M-2 45 | 280S-2 75 |
65-40-315A | 13.5 22.5 27 | 103 101 98 | 2900 | 18.93 20.63 22.52 | 20 30 32 | 2.4 2.4 3.0 | 200L1-2 30 | 200L1-2 30 | 225M-2 45 |
65-40-315B | 12.8 21.3 25.6 | 92 90 88 | 2900 | 16.05 17.41 19.17 | 20 30 32 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-65-125 | 30 50 60 | 22.5 20 18 | 2900 | 3.40 4.19 4.60 | 54 65 64 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
80-65-125A | 27.6 46 55.2 | 18.5 16.2 14 | 2900 | 2.68 3.22 3.39 | 52 63 62 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S1-2 5.5 | 132S2-2 7.5 |
80-65-125B | 25.5 42.5 51 | 16.5 14.5 12.5 | 2900 | 2.20 2.66 2.80 | 52 63 62 | 2.4 2.4 3.0 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
80-65-160 | 30 50 60 | 34 32 29 | 2900 | 5.55 7.03 7.78 | 50 62 61 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-65-160A | 27.6 46 55.2 | 28.5 26 23 | 2900 | 4.56 5.52 5.96 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
80-65-160B | 25.5 42.5 51 | 25.5 23.1 20.0 | 2900 | 3.77 4.53 4.79 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
80-50-200 | 30 50 60 | 53 50 47 | 2900 | 9.84 11.75 12.84 | 44 58 60 | 2.4 2.4 3.0 | 160M2-2 15 | 160L-2 18.5 | 200L1-2 30 |
80-50-200A | 27.6 46 55.2 | 43 40.5 37.5 | 2900 | 7.52 8.90 9.55 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
80-50-200B | 25.5 42.5 51 | 39 36 33 | 2900 | 6.30 7.31 7.73 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-50-250 | 30 50 60 | 84 80 75 | 2900 | 17.15 21.38 23.61 | 40 51 52 | 2.4 2.4 3.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
80-50-250A | 27.5 46 55.2 | 69 65 60 | 2900 | 12.97 16.29 17.68 | 40 50 51 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-50-250B | 25.5 42.5 51 | 61.8 57.8 52.8 | 2900 | 10.72 13.38 14.38 | 40 50 51 | 2.4 2.4 3.0 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
80-50-315 | 30 50 60 | 128 125 123 | 2900 | 36.05 40.56 44.75 | 29 42 45 | 2.4 2.4 3.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
80-50-315A | 27.6 46 55.2 | 103 101 98 | 2900 | 27.39 30.67 33.47 | 28 41 44 | 2.4 2.4 3.0 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
80-50-315B | 25.5 42.5 51 | 92 90 88 | 2900 | 20.81 25.42 27.78 | 28 41 44 | 2.4 2.4 3.0 | 200L1-2 30 | 225M-2 45 | 225M-2 45 |
100-80-125 | 60 100 120 | 23 20 16.5 | 2900 | 6.49 7.90 8.29 | 58 69 65 | 3.2 3.2 4.5 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
100-80-125A | 54 90 108 | 19.2 16.2 12.9 | 2900 | 4.95 5.84 5.93 | 57 68 64 | 3.2 3.2 4.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
100-80-125B | 48 80 96 | 17.5 14.5 11 | 2900 | 4.08 4.71 4.57 | 56 67 63 | 3.2 3.2 4.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160 | 60 100 120 | 35 32 28 | 2900 | 10.32 13.02 14.28 | 56 67 64 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-80-160A | 54 90 108 | 29 26 22 | 2900 | 7.75 9.66 10.27 | 55 60 63 | 3.2 3.2 4.5 | 160M2-2 15 | 160M2-2 15 | 180M-2 22 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
100-65-200A | 54 90 108 | 44.5 40.5 37.5 | 2900 | 14.71 16.01 17.5 | 51 62 63 | 3.2 3.2 4.5 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
100-65-200B | 48 80 96 | 40 36 33 | 2900 | 10.46 12.86 13.88 | 50 61 62 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-65-250 | 60 100 120 | 86 80 74.5 | 2900 | 28.16 35.74 39.26 | 50 61 62 | 3.2 3.2 4.5 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
100-65-250A | 54 90 108 | 71 65 59 | 2900 | 20.88 26.12 28.0 | 50 61 62 | 3.2 3.2 4.5 | 200L2-2 37 | 225M-2 45 | 250M-2 55 |
100-65-250B | 48 80 96 | 63.8 57.8 52 | 2900 | 17.02 20.99 22.29 | 49 60 61 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
100-65-315 | 60 100 120 | 132 125 118 | 2900 | 50.26 63.09 70.11 | 43 54 55 | 3.2 3.2 4.5 | 280S-2 75 | 315S-2 110 | 315M-2 132 |
100-65-315A | 54 90 108 | 108 101 94 | 2900 | 38.74 47.61 52.16 | 41 52 53 | 3.2 3.2 4.5 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
100-65-315B | 48 80 96 | 97 90 83 | 2900 | 30.92 37.70 40.95 | 41 52 53 | 3.2 3.2 4.5 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-200 | 120 200 240 | 54 50 47 | 2900 | 34.16 39.47 42.79 | 55 69 68 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
125-100-200A | 108 180 216 | 48 40.5 35 | 2900 | 26.14 29.20 30.73 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 250M-2 55 | 280S-2 75 |
125-100-200B | 90 150 180 | 43 36 30.5 | 2900 | 19.52 22.31 24.50 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 200L2-2 37 | 250M-2 55 |
125-100-250 | 120 200 240 | 87 80 74.5 | 2900 | 52.65 66.02 72.68 | 54 66 67 | 4.5 4.5 5.0 | 280S-2 75 | 315S-2 110 | 315L1-2 160 |
125-100-250A | 108 180 216 | 72 65 59.5 | 2900 | 39.96 49.02 53.03 | 53 65 66 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
125-100-250B | 90 150 180 | 64.8 57.8 54 | 2900 | 29.97 41.15 42 | 53 65 66 | 4.5 4.5 5.0 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-315 | 120 200 240 | 132.5 125 120 | 2900 | 80.2 104 118 | 54 65 66 | 4.5 4.5 5.0 | 315M-2 132 | 315M-2 132 | 315L1-2 160 |
125-100-315A | 108 180 216 | 107.3 101.3 97.2 | 2900 | 59.5 78.8 90.7 | 53 63 63 | 4.5 4.5 5.0 | 315S-2 110 | 315M-2 132 | 315L1-2 160 |
125-100-315B | 96 160 192 | 84.8 80 76.8 | 2900 | 41.8 56.2 64.8 | 53 62 62 | 4.5 4.5 5.0 | 280M-2 90 | 315S-2 110 | 315M-2 132 |
