Pump' s design conforms to ISO2858. Overflow components of the pump are made of 304, 316, 316L, Titanium, etc. There is shaft coupling in the pump. For reparation, disassemble shaft coupling and there is no need to disassemble pipes or motor.
Flow capacity: 1.8-400 m3/h
Lift: 15-125m
Highest temperature: 400℃
Pressure: 1.6 MPa.
To transfer chemical medium.
1. Structure of suspension type. Support point of sliding bearing, load torque and torsion are in distance piece of joint. Because of the shield and coupling on the pump, it does not need to remove the motor and pipes when maintain the pump, it just needs to uninstall coupling, distance piece and bolts.
With the same installation size of IS and IH magnetic pump, it is compatible and interchangeable. Sliding bearing, shaft sleeve and thrust bearing are much bigger, safe and reliable.
2. The wearing parts of the magnetic pump are sliding bearing, shaft sleeve and thrust bearing when working. With more wear-resisting, lubricity, higher hardness of tungsten carbide used on wearing parts, it makes the pump working in continuous operation condition. Generally, it can work continuous over 26 months without replace the wearing part. Each pump has over load protection device, which monitors no-load, over load and makes the pump working well. When the IMC magnetic pump with jacket breaks down, it can cut off the power, reduce to replace wearing parts and maintenance costs.
3. Shroud of IMC chemical process pump using cross section of stainless steel, Hastelloy alloys, PEEK enhanced by carbide fiber and so on. It improved the efficiency on transmission of magnetic.
4. With advanced hydraulic model, the isolation sets are made of Hastelloy and titanium alloys, which improved pumps' performance 8% to 12%.
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
25-20-125 | 1.8 2.5 3.3 | 20.6 20 18 | 2800 | 0.56 0.57 0.70 | 18 24 23 | 2.0 2.0 2.5 | 80S-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
25-20-160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 1.09 1.10 1.3 | 15 19 20 | 2.0 2.0 2.5 | 90S-2 1.5 | 90L-2 2.2 | 100L-2 3 |
32-25-110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.4 0.45 0.54 | 30 36 35 | 2.0 2.0 2.5 | 801-2 0.75 | 802-2 1.1 | 90S-2 1.5 |
32-25-125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.65 0.72 0.87 | 24 30 29 | 2.0 2.0 2.5 | 802-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 2900 | 4.28 4.86 5.16 | 25 35 38 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-125 | 15 25 30 | 22 20 18.5 | 2900 | 1.96 2.31 2.47 | 46 59 61 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-50-125A | 13.5 22.5 27 | 18 16.2 14.5 | 2900 | 1.47 1.71 1.77 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-125B | 12.8 21.3 25.6 | 16.5 14.5 13 | 2900 | 1.24 1.45 1.51 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-160 | 15 25 30 | 35 32 30 | 2900 | 3.25 3.96 4.38 | 44 55 56 | 2.0 2.0 2.5 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-160A | 13.5 22.5 27 | 28.5 26 24 | 2900 | 2.44 3.12 3.39 | 43 51 52 | 2.0 2.0 2.5 | 112M-2 4 | 132S1-2 5.5 | 132S2-2 7.5 |
65-50-160B | 12.8 21.3 25.6 | 25.5 23.1 21.0 | 2900 | 2.12 2.68 2.87 | 42 50 51 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-40-200 | 15 25 30 | 53 50 47 | 2900 | 6.02 7.09 7.83 | 36 48 49 | 2.0 2.0 2.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
65-40-200A | 13.5 22.5 27 | 43 40.5 37.5 | 2900 | 4.52 5.39 5.87 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
65-40-200B | 12.8 21.3 25.6 | 38.5 36 34.5 | 2900 | 3.84 4.54 5.11 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
65-40-250 | 15 25 30 | 82 80 78.5 | 2900 | 12.42 13.96 15.64 | 27 39 41 | 2.0 2.0 2.5 | 160L-2 18.5 | 180M-2 22 | 200L-2 30 |
65-40-250A | 13.5 22.5 27 | 67 65 63.5 | 2900 | 9.47 10.48 11.67 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160L-2 18.5 | 180M-2 22 |
65-40-250B | 12.8 21.3 25.6 | 59.8 57.8 56.3 | 2900 | 8.03 8.83 9.81 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160M2-2 15 | 160L-2 18.5 |
65-40-315 | 15 25 30 | 127 125 123 | 2900 | 27.33 27.44 30.44 | 19 31 33 | 2.4 2.4 3.0 | 200L2-2 37 | 225M-2 45 | 280S-2 75 |
65-40-315A | 13.5 22.5 27 | 103 101 98 | 2900 | 18.93 20.63 22.52 | 20 30 32 | 2.4 2.4 3.0 | 200L1-2 30 | 200L1-2 30 | 225M-2 45 |
65-40-315B | 12.8 21.3 25.6 | 92 90 88 | 2900 | 16.05 17.41 19.17 | 20 30 32 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-65-125 | 30 50 60 | 22.5 20 18 | 2900 | 3.40 4.19 4.60 | 54 65 64 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
80-65-125A | 27.6 46 55.2 | 18.5 16.2 14 | 2900 | 2.68 3.22 3.39 | 52 63 62 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S1-2 5.5 | 132S2-2 7.5 |
80-65-125B | 25.5 42.5 51 | 16.5 14.5 12.5 | 2900 | 2.20 2.66 2.80 | 52 63 62 | 2.4 2.4 3.0 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
80-65-160 | 30 50 60 | 34 32 29 | 2900 | 5.55 7.03 7.78 | 50 62 61 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-65-160A | 27.6 46 55.2 | 28.5 26 23 | 2900 | 4.56 5.52 5.96 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
80-65-160B | 25.5 42.5 51 | 25.5 23.1 20.0 | 2900 | 3.77 4.53 4.79 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
80-50-200 | 30 50 60 | 53 50 47 | 2900 | 9.84 11.75 12.84 | 44 58 60 | 2.4 2.4 3.0 | 160M2-2 15 | 160L-2 18.5 | 200L1-2 30 |
80-50-200A | 27.6 46 55.2 | 43 40.5 37.5 | 2900 | 7.52 8.90 9.55 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
80-50-200B | 25.5 42.5 51 | 39 36 33 | 2900 | 6.30 7.31 7.73 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-50-250 | 30 50 60 | 84 80 75 | 2900 | 17.15 21.38 23.61 | 40 51 52 | 2.4 2.4 3.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
80-50-250A | 27.5 46 55.2 | 69 65 60 | 2900 | 12.97 16.29 17.68 | 40 50 51 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-50-250B | 25.5 42.5 51 | 61.8 57.8 52.8 | 2900 | 10.72 13.38 14.38 | 40 50 51 | 2.4 2.4 3.0 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
80-50-315 | 30 50 60 | 128 125 123 | 2900 | 36.05 40.56 44.75 | 29 42 45 | 2.4 2.4 3.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
80-50-315A | 27.6 46 55.2 | 103 101 98 | 2900 | 27.39 30.67 33.47 | 28 41 44 | 2.4 2.4 3.0 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
80-50-315B | 25.5 42.5 51 | 92 90 88 | 2900 | 20.81 25.42 27.78 | 28 41 44 | 2.4 2.4 3.0 | 200L1-2 30 | 225M-2 45 | 225M-2 45 |
100-80-125 | 60 100 120 | 23 20 16.5 | 2900 | 6.49 7.90 8.29 | 58 69 65 | 3.2 3.2 4.5 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
100-80-125A | 54 90 108 | 19.2 16.2 12.9 | 2900 | 4.95 5.84 5.93 | 57 68 64 | 3.2 3.2 4.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
100-80-125B | 48 80 96 | 17.5 14.5 11 | 2900 | 4.08 4.71 4.57 | 56 67 63 | 3.2 3.2 4.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160 | 60 100 120 | 35 32 28 | 2900 | 10.32 13.02 14.28 | 56 67 64 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-80-160A | 54 90 108 | 29 26 22 | 2900 | 7.75 9.66 10.27 | 55 60 63 | 3.2 3.2 4.5 | 160M2-2 15 | 160M2-2 15 | 180M-2 22 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
100-65-200A | 54 90 108 | 44.5 40.5 37.5 | 2900 | 14.71 16.01 17.5 | 51 62 63 | 3.2 3.2 4.5 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
100-65-200B | 48 80 96 | 40 36 33 | 2900 | 10.46 12.86 13.88 | 50 61 62 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-65-250 | 60 100 120 | 86 80 74.5 | 2900 | 28.16 35.74 39.26 | 50 61 62 | 3.2 3.2 4.5 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
100-65-250A | 54 90 108 | 71 65 59 | 2900 | 20.88 26.12 28.0 | 50 61 62 | 3.2 3.2 4.5 | 200L2-2 37 | 225M-2 45 | 250M-2 55 |
100-65-250B | 48 80 96 | 63.8 57.8 52 | 2900 | 17.02 20.99 22.29 | 49 60 61 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
100-65-315 | 60 100 120 | 132 125 118 | 2900 | 50.26 63.09 70.11 | 43 54 55 | 3.2 3.2 4.5 | 280S-2 75 | 315S-2 110 | 315M-2 132 |
100-65-315A | 54 90 108 | 108 101 94 | 2900 | 38.74 47.61 52.16 | 41 52 53 | 3.2 3.2 4.5 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
100-65-315B | 48 80 96 | 97 90 83 | 2900 | 30.92 37.70 40.95 | 41 52 53 | 3.2 3.2 4.5 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-200 | 120 200 240 | 54 50 47 | 2900 | 34.16 39.47 42.79 | 55 69 68 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
125-100-200A | 108 180 216 | 48 40.5 35 | 2900 | 26.14 29.20 30.73 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 250M-2 55 | 280S-2 75 |
125-100-200B | 90 150 180 | 43 36 30.5 | 2900 | 19.52 22.31 24.50 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 200L2-2 37 | 250M-2 55 |
125-100-250 | 120 200 240 | 87 80 74.5 | 2900 | 52.65 66.02 72.68 | 54 66 67 | 4.5 4.5 5.0 | 280S-2 75 | 315S-2 110 | 315L1-2 160 |
125-100-250A | 108 180 216 | 72 65 59.5 | 2900 | 39.96 49.02 53.03 | 53 65 66 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
125-100-250B | 90 150 180 | 64.8 57.8 54 | 2900 | 29.97 41.15 42 | 53 65 66 | 4.5 4.5 5.0 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-315 | 120 200 240 | 132.5 125 120 | 2900 | 80.2 104 118 | 54 65 66 | 4.5 4.5 5.0 | 315M-2 132 | 315M-2 132 | 315L1-2 160 |
125-100-315A | 108 180 216 | 107.3 101.3 97.2 | 2900 | 59.5 78.8 90.7 | 53 63 63 | 4.5 4.5 5.0 | 315S-2 110 | 315M-2 132 | 315L1-2 160 |
125-100-315B | 96 160 192 | 84.8 80 76.8 | 2900 | 41.8 56.2 64.8 | 53 62 62 | 4.5 4.5 5.0 | 280M-2 90 | 315S-2 110 | 315M-2 132 |
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
50-32-125 | 3.75 6.3 7.5 | 5.5 5 4.6 | 1450 | 0.16 0.19 0.20 | 36 46 47 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125A | 3.4 5.7 6.8 | 4.5 4.1 3.6 | 1450 | 0.12 0.14 0.15 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125B | 3.1 5.2 6.2 | 4 3.6 3.3 | 1450 | 0.10 0.11 0.12 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160 | 3.75 6.3 7.5 | 8.6 8 7.2 | 1450 | 0.31 0.35 0.37 | 28 39 40 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
50-32-160A | 3.4 5.7 6.8 | 7.1 6.5 5.8 | 1450 | 0.24 0.26 0.28 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160B | 3.1 5.2 6.2 | 6.4 5.8 5.1 | 1450 | 0.20 0.22 0.22 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-200 | 3.75 6.3 7.5 | 13.1 12.5 12 | 1450 | 0.61 0.69 0.74 | 22 31 33 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
50-32-200A | 3.4 5.7 6.8 | 10.8 10.1 9.6 | 1450 | 0.47 0.52 0.56 | 21 30 32 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
50-32-200B | 3.1 5.2 6.2 | 9.6 9 8.5 | 1450 | 0.39 0.42 0.45 | 21 30 32 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
50-32-250 | 3.75 6.3 7.5 | 20.5 20 19.5 | 1450 | 1.39 1.42 1.47 | 15 24 27 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
50-32-250A | 3.4 5.7 6.8 | 16.8 16.3 15.9 | 1450 | 1.03 1.09 1.13 | 15 23 26 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
50-32-250B | 3.1 5.2 6.2 | 15 14.5 14.1 | 1450 | 0.84 0.89 0.91 | 15 23 26 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-50-125 | 7.5 12.5 15 | 5.5 5 4.6 | 1450 | 0.27 0.31 0.34 | 42 54 55 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-50-125A | 6.8 11.3 13.6 | 4.5 4.1 3.6 | 1450 | 0.20 0.24 0.25 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-125B | 6.1 10.1 12.1 | 4 3.6 3.3 | 1450 | 0.16 0.19 0.22 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-160 | 7.5 12.5 15 | 8.8 8.0 7.2 | 1450 | 0.46 0.54 0.58 | 38 50 51 | 2.0 2.0 2.5 | 802-4 0.75 | 90L-4 1.1 | 90L-4 1.1 |
65-50-160A | 6.8 11.3 13.6 | 7.1 6.5 5.8 | 1450 | 0.36 0.41 0.43 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90L-4 1.1 |
65-50-160B | 6.1 10.1 12.1 | 6.4 5.8 5.1 | 1450 | 0.29 0.33 0.34 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-40-200 | 7.5 12.5 15 | 13.2 12.5 11.8 | 1450 | 0.87 0.99 1.07 | 31 43 45 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-40-200A | 6.8 11.3 13.6 | 10.8 10.1 9.6 | 1450 | 0.67 0.74 0.81 | 30 42 44 | 2.0 2.0 2.5 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
65-40-200B | 6.1 10.1 12.1 | 9.6 9 8.5 | 1450 | 0.53 0.59 0.64 | 30 42 44 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
65-40-250 | 7.5 12.5 15 | 20.5 20 19.5 | 1450 | 1.82 1.94 2.10 | 23 35 38 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
65-40-250A | 6.8 11.3 13.6 | 16.8 16.3 15.9 | 1450 | 1.41 1.48 1.59 | 22 34 37 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
65-40-250B | 6.1 10.1 12.1 | 15 14.5 14.1 | 1450 | 1.12 1.17 1.26 | 22 34 37 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
65-40-315 | 7.5 12.5 15 | 32.3 32 30.7 | 1450 | 3.29 3.89 4.18 | 20 28 31 | 2.5 2.5 3.0 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
65-40-315A | 6.8 11.3 13.6 | 25.8 25.2 24.5 | 1450 | 2.33 2.87 2.93 | 20 29 31 | 2.5 2.5 3.0 | 112M-4 4 | 112M-4 4 | 132S-4 5.5 |
65-40-315B | 6.1 10.1 12.1 | 23 22.5 22 | 1450 | 1.91 2.30 2.34 | 20 27 31 | 2.5 2.5 3.0 | 100L-4 3 | 112M-4 4 | 132S-4 5.5 |
80-65-125 | 15 25 30 | 5.6 5.0 4.5 | 1450 | 0.51 0.56 0.58 | 45 61 62 | 2.5 2.5 3.0 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
80-65-125A | 13.5 22.5 27 | 4.5 4.1 3.6 | 1450 | 0.38 0.42 0.43 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
80-65-125B | 12.8 21.3 25.6 | 4 3.6 3.3 | 1450 | 0.32 0.35 0.38 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
80-65-160 | 15 25 30 | 9 8 7.2 | 1450 | 0.82 0.92 1.01 | 45 59 58 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-65-160A | 13.5 22.5 27 | 7.1 6.5 5.8 | 1450 | 0.59 0.69 0.75 | 44 58 57 | 2.3 2.3 2.8 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
80-65-160B | 12.8 21.3 25.6 | 6.4 5.8 5.1 | 1450 | 0.51 0.58 0.67 | 44 58 57 | 2.3 2.3 2.8 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
80-50-200 | 15 25 30 | 13.2 12.5 11.8 | 1450 | 1.32 1.55 1.69 | 41 55 57 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-200A | 13.5 22.5 27 | 10.8 10.1 9.6 | 1450 | 0.99 1.15 1.26 | 40 54 56 | 2.3 2.3 2.8 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
80-50-200B | 12.8 21.3 25.6 | 9.6 9 8.5 | 1450 | 0.84 0.97 1.06 | 40 54 56 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-50-250 | 15 25 30 | 21 20 18.8 | 1450 | 2.32 2.83 3.13 | 37 48 49 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
80-50-250A | 13.5 22.5 27 | 16.8 16.3 15.1 | 1450 | 1.72 2.13 2.31 | 36 47 48 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
80-50-250B | 12.8 21.3 25.6 | 15 14.5 13.4 | 1450 | 1.45 1.79 1.95 | 36 47 48 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-315 | 15 25 30 | 32.5 32 31.5 | 1450 | 4.92 5.58 6.43 | 27 39 40 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
80-50-315A | 13.5 22.5 27 | 25.8 25.2 24.5 | 1450 | 3.65 4.06 4.62 | 26 38 39 | 2.3 2.3 2.8 | 132S-4 4 | 132M-4 7.5 | 160M-4 11 |
80-50-315B | 12.8 21.3 25.6 | 23 22.5 22 | 1450 | 3.09 3.44 3.93 | 26 38 39 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-80-125 | 30 50 60 | 6 5 4.1 | 1450 | 0.88 1.02 1.05 | 56 67 64 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125A | 27.6 46 55.2 | 4.5 4.1 3.6 | 1450 | 0.62 0.78 0.86 | 55 66 63 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125B | 25.5 42.5 51 | 4 3.6 3.3 | 1450 | 0.50 0.63 0.73 | 55 66 63 | 2.5 2.5 3.0 | 802S-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
100-80-160 | 30 50 60 | 9.2 8.0 6.8 | 1450 | 1.32 1.68 1.83 | 57 65 61 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-80-160A | 27.5 46 55.2 | 7.1 6.5 5.8 | 1450 | 0.95 1.27 1.45 | 56 64 60 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
100-80-160B | 25.5 42.5 51 | 6.4 5.8 5.1 | 1450 | 0.79 1.05 1.18 | 56 64 60 | 2.5 2.5 3.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
100-65-200 | 30 50 60 | 13.5 12.5 11.8 | 1450 | 2.35 2.75 3.07 | 49 62 63 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-200A | 27.6 46 55.2 | 10.8 10.1 9.6 | 1450 | 1.69 2.07 2.33 | 48 61 62 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
100-65-200B | 25.5 42.5 51 | 9.6 9.0 8.5 | 1450 | 1.39 1.71 1.90 | 48 61 62 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-65-250 | 30 50 60 | 21.3 20 19 | 1450 | 3.78 4.62 5.10 | 46 59 61 | 2.3 2.3 2.8 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
100-65-250A | 27.6 46 55.2 | 16.8 16.3 15.9 | 1450 | 2.81 3.52 3.98 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132S-4 5.5 |
100-65-250B | 25.5 42.5 51 | 15 14.5 14 | 1450 | 2.31 2.89 3.24 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-315 | 30 50 60 | 34 32 30 | 1450 | 7.12 8.55 9.45 | 39 51 52 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
100-65-315A | 27.6 46 55.2 | 26 25.2 24.5 | 1450 | 5.14 6.31 7.22 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
100-65-315B | 25.5 42.5 51 | 23 22.5 22 | 1450 | 4.20 5.21 5.99 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-200 | 60 100 120 | 14.5 12.5 11.0 | 1450 | 4.40 5.01 5.36 | 54 68 67 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200A | 54 90 108 | 11.5 10.5 9.8 | 1450 | 3.19 3.84 4.37 | 53 67 66 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200B | 48 80 96 | 9.8 9.0 8.5 | 1450 | 2.42 2.93 3.37 | 53 67 66 | 2.8 2.8 3.5 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
125-100-250 | 60 100 120 | 21.3 20 19 | 1450 | 6.71 8.39 9.26 | 52 65 67 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-250A | 54 90 108 | 16.8 16.3 15.9 | 1450 | 4.84 6.24 7.08 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-250B | 48 80 96 | 15.0 14.5 14.0 | 1450 | 3.84 4.94 5.55 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 132S-4 5.5 | 160M-4 11 |
125-100-315 | 60 100 120 | 33.5 32 30.5 | 1450 | 12.2 14.5 16.3 | 45 60 61 | 2.5 2.5 3.0 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
125-100-315A | 54 90 108 | 27.1 25.9 24.7 | 1450 | 9.0 10.8 12.1 | 44 59 60 | 2.5 2.5 3.0 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
125-100-315B | 48 80 96 | 21.4 20.5 19.5 | 1450 | 6.5 7.7 8.6 | 43 58 59 | 2.5 2.5 3.0 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-400 | 60 100 120 | 52 50 48.5 | 1450 | 17.0 26.2 29.4 | 50 52 54 | 2.5 2.5 3.0 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
125-100-400A | 54 90 108 | 42.1 40.5 39.3 | 1450 | 12.4 19 21.4 | 50 52 54 | 2.5 2.5 3.0 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
125-100-400B | 48 80 96 | 33.3 32 31 | 1450 | 8.9 13.7 15.3 | 49 51 53 | 2.5 2.5 3.0 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250 | 120 200 240 | 24.8 20 15 | 1450 | 15.6 17.3 18.2 | 52 63 54 | 2.5 2.8 3.5 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250A | 108 180 216 | 20.1 16.2 12.2 | 1450 | 11.6 12.8 13.5 | 51 62 53 | 2.5 2.8 3.5 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
150-125-250B | 97.2 162 194 | 15.9 12.8 9.6 | 1450 | 8.3 9.1 9.6 | 51 62 53 | 2.5 2.8 3.5 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
150-125-315 | 120 200 240 | 36.3 32 28.5 | 1450 | 23.7 28.1 31.6 | 50 62 59 | 2.5 2.8 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
150-125-315A | 108 180 216 | 29.4 25.9 23.1 | 1450 | 17.3 20.5 23.0 | 50 62 59 | 2.5 2.8 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
150-125-315B | 97.2 162 194 | 23.2 20.5 18.3 | 1450 | 12.5 14.8 16.7 | 49 61 58 | 2.5 2.8 3.8 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-400 | 120 200 240 | 57.5 50 44 | 1450 | 40.0 48.6 58.7 | 47 56 49 | 2.0 2.8 3.5 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
150-125-400A | 108 180 216 | 46.6 40.5 35.6 | 1450 | 29.2 35.5 42.7 | 47 56 49 | 2.0 2.8 3.5 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
150-125-400B | 97.2 162 194 | 36.8 32 28.2 | 1450 | 20.7 25.2 35.4 | 47 56 49 | 2.0 2.8 3.5 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250 | 240 400 460 | 24.8 20 18 | 1450 | 28.9 32.5 38.8 | 56 67 58 | 2.8 3.2 3.8 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-250A | 216 360 414 | 20.1 16.2 14.6 | 1450 | 21.5 24.0 28.9 | 55 66 57 | 2.8 3.2 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250B | 192 320 368 | 15.9 12.8 11.6 | 1450 | 15.1 16.9 20.4 | 55 66 57 | 2.8 3.2 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
200-150-315 | 240 400 460 | 36.3 32 28.5 | 1450 | 43.1 52.0 54.9 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315A | 216 360 414 | 29.4 25.9 23.1 | 1450 | 31.4 37.9 40.0 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315B | 192 320 368 | 23.2 20.5 18.3 | 1450 | 22.5 27.0 28.7 | 54 66 64 | 3.0 3.5 4.0 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-400 | 240 400 460 | 56 50 46.5 | 1450 | 67.8 89.3 104.0 | 54 61 56 | 3.0 3.8 4.5 | 315S-4 110 | 315M-4 132 | 315L1-4 |
200-150-400A | 216 360 414 | 45.3 40.5 37.7 | 1450 | 49.4 65.1 75.9 | 54 61 56 | 3.0 3.8 4.5 | 280M-4 90 | 315S-4 110 | 315M-4 132 |
200-150-400B | 192 320 368 | 35.8 32 29.8 | 1450 | 34.7 45.7 53.3 | 54 61 56 | 3.0 3.8 4.5 | 280S-4 75 | 280M-4 90 | 315S-4 110 |
Pump' s design conforms to ISO2858. Overflow components of the pump are made of 304, 316, 316L, Titanium, etc. There is shaft coupling in the pump. For reparation, disassemble shaft coupling and there is no need to disassemble pipes or motor.

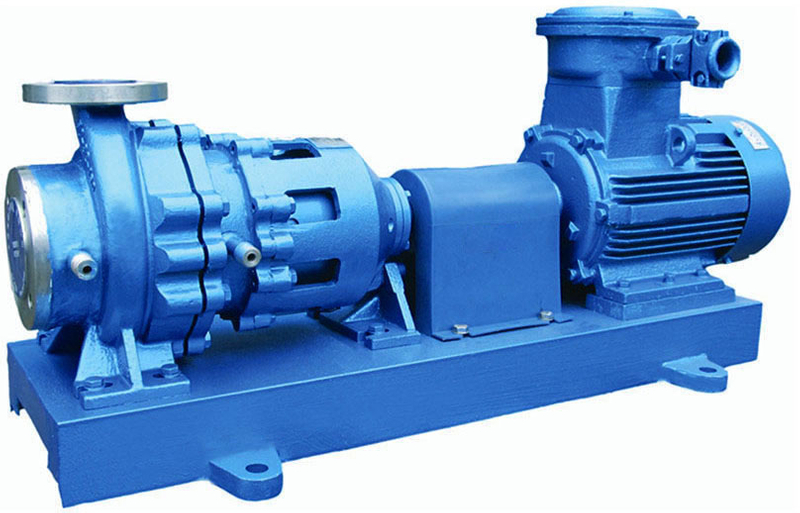

Flow capacity: 1.8-400 m3/h
Lift: 15-125m
Highest temperature: 400℃
Pressure: 1.6 MPa.
To transfer chemical medium.
1. Structure of suspension type. Support point of sliding bearing, load torque and torsion are in distance piece of joint. Because of the shield and coupling on the pump, it does not need to remove the motor and pipes when maintain the pump, it just needs to uninstall coupling, distance piece and bolts.
With the same installation size of IS and IH magnetic pump, it is compatible and interchangeable. Sliding bearing, shaft sleeve and thrust bearing are much bigger, safe and reliable.
2. The wearing parts of the magnetic pump are sliding bearing, shaft sleeve and thrust bearing when working. With more wear-resisting, lubricity, higher hardness of tungsten carbide used on wearing parts, it makes the pump working in continuous operation condition. Generally, it can work continuous over 26 months without replace the wearing part. Each pump has over load protection device, which monitors no-load, over load and makes the pump working well. When the IMC magnetic pump with jacket breaks down, it can cut off the power, reduce to replace wearing parts and maintenance costs.
3. Shroud of IMC chemical process pump using cross section of stainless steel, Hastelloy alloys, PEEK enhanced by carbide fiber and so on. It improved the efficiency on transmission of magnetic.
4. With advanced hydraulic model, the isolation sets are made of Hastelloy and titanium alloys, which improved pumps' performance 8% to 12%.
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
25-20-125 | 1.8 2.5 3.3 | 20.6 20 18 | 2800 | 0.56 0.57 0.70 | 18 24 23 | 2.0 2.0 2.5 | 80S-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
25-20-160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 1.09 1.10 1.3 | 15 19 20 | 2.0 2.0 2.5 | 90S-2 1.5 | 90L-2 2.2 | 100L-2 3 |
32-25-110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.4 0.45 0.54 | 30 36 35 | 2.0 2.0 2.5 | 801-2 0.75 | 802-2 1.1 | 90S-2 1.5 |
32-25-125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.65 0.72 0.87 | 24 30 29 | 2.0 2.0 2.5 | 802-2 1.1 | 90S-2 1.5 | 90L-2 2.2 |
50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 2900 | 4.28 4.86 5.16 | 25 35 38 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-125 | 15 25 30 | 22 20 18.5 | 2900 | 1.96 2.31 2.47 | 46 59 61 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-50-125A | 13.5 22.5 27 | 18 16.2 14.5 | 2900 | 1.47 1.71 1.77 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-125B | 12.8 21.3 25.6 | 16.5 14.5 13 | 2900 | 1.24 1.45 1.51 | 45 58 60 | 2.0 2.0 2.5 | 100L-2 3 | 100L-2 3 | 112M-2 4 |
65-50-160 | 15 25 30 | 35 32 30 | 2900 | 3.25 3.96 4.38 | 44 55 56 | 2.0 2.0 2.5 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
65-50-160A | 13.5 22.5 27 | 28.5 26 24 | 2900 | 2.44 3.12 3.39 | 43 51 52 | 2.0 2.0 2.5 | 112M-2 4 | 132S1-2 5.5 | 132S2-2 7.5 |
65-50-160B | 12.8 21.3 25.6 | 25.5 23.1 21.0 | 2900 | 2.12 2.68 2.87 | 42 50 51 | 2.0 2.0 2.5 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
65-40-200 | 15 25 30 | 53 50 47 | 2900 | 6.02 7.09 7.83 | 36 48 49 | 2.0 2.0 2.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
65-40-200A | 13.5 22.5 27 | 43 40.5 37.5 | 2900 | 4.52 5.39 5.87 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
65-40-200B | 12.8 21.3 25.6 | 38.5 36 34.5 | 2900 | 3.84 4.54 5.11 | 35 46 47 | 2.0 2.0 2.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
65-40-250 | 15 25 30 | 82 80 78.5 | 2900 | 12.42 13.96 15.64 | 27 39 41 | 2.0 2.0 2.5 | 160L-2 18.5 | 180M-2 22 | 200L-2 30 |
65-40-250A | 13.5 22.5 27 | 67 65 63.5 | 2900 | 9.47 10.48 11.67 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160L-2 18.5 | 180M-2 22 |
65-40-250B | 12.8 21.3 25.6 | 59.8 57.8 56.3 | 2900 | 8.03 8.83 9.81 | 26 38 40 | 2.0 2.0 2.5 | 160M2-2 15 | 160M2-2 15 | 160L-2 18.5 |
65-40-315 | 15 25 30 | 127 125 123 | 2900 | 27.33 27.44 30.44 | 19 31 33 | 2.4 2.4 3.0 | 200L2-2 37 | 225M-2 45 | 280S-2 75 |
65-40-315A | 13.5 22.5 27 | 103 101 98 | 2900 | 18.93 20.63 22.52 | 20 30 32 | 2.4 2.4 3.0 | 200L1-2 30 | 200L1-2 30 | 225M-2 45 |
65-40-315B | 12.8 21.3 25.6 | 92 90 88 | 2900 | 16.05 17.41 19.17 | 20 30 32 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-65-125 | 30 50 60 | 22.5 20 18 | 2900 | 3.40 4.19 4.60 | 54 65 64 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S2-2 7.5 | 160M1-2 11 |
80-65-125A | 27.6 46 55.2 | 18.5 16.2 14 | 2900 | 2.68 3.22 3.39 | 52 63 62 | 2.4 2.4 3.0 | 132S1-2 5.5 | 132S1-2 5.5 | 132S2-2 7.5 |
80-65-125B | 25.5 42.5 51 | 16.5 14.5 12.5 | 2900 | 2.20 2.66 2.80 | 52 63 62 | 2.4 2.4 3.0 | 112M-2 4 | 112M-2 4 | 132S1-2 5.5 |
80-65-160 | 30 50 60 | 34 32 29 | 2900 | 5.55 7.03 7.78 | 50 62 61 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-65-160A | 27.6 46 55.2 | 28.5 26 23 | 2900 | 4.56 5.52 5.96 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
80-65-160B | 25.5 42.5 51 | 25.5 23.1 20.0 | 2900 | 3.77 4.53 4.79 | 47 59 58 | 2.4 2.4 3.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
80-50-200 | 30 50 60 | 53 50 47 | 2900 | 9.84 11.75 12.84 | 44 58 60 | 2.4 2.4 3.0 | 160M2-2 15 | 160L-2 18.5 | 200L1-2 30 |
80-50-200A | 27.6 46 55.2 | 43 40.5 37.5 | 2900 | 7.52 8.90 9.55 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
80-50-200B | 25.5 42.5 51 | 39 36 33 | 2900 | 6.30 7.31 7.73 | 43 57 59 | 2.4 2.4 3.0 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
80-50-250 | 30 50 60 | 84 80 75 | 2900 | 17.15 21.38 23.61 | 40 51 52 | 2.4 2.4 3.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
80-50-250A | 27.5 46 55.2 | 69 65 60 | 2900 | 12.97 16.29 17.68 | 40 50 51 | 2.4 2.4 3.0 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
80-50-250B | 25.5 42.5 51 | 61.8 57.8 52.8 | 2900 | 10.72 13.38 14.38 | 40 50 51 | 2.4 2.4 3.0 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
80-50-315 | 30 50 60 | 128 125 123 | 2900 | 36.05 40.56 44.75 | 29 42 45 | 2.4 2.4 3.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
80-50-315A | 27.6 46 55.2 | 103 101 98 | 2900 | 27.39 30.67 33.47 | 28 41 44 | 2.4 2.4 3.0 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
80-50-315B | 25.5 42.5 51 | 92 90 88 | 2900 | 20.81 25.42 27.78 | 28 41 44 | 2.4 2.4 3.0 | 200L1-2 30 | 225M-2 45 | 225M-2 45 |
100-80-125 | 60 100 120 | 23 20 16.5 | 2900 | 6.49 7.90 8.29 | 58 69 65 | 3.2 3.2 4.5 | 160M1-2 11 | 160M2-2 15 | 160L-2 18.5 |
100-80-125A | 54 90 108 | 19.2 16.2 12.9 | 2900 | 4.95 5.84 5.93 | 57 68 64 | 3.2 3.2 4.5 | 132S2-2 7.5 | 160M1-2 11 | 160M1-2 11 |
100-80-125B | 48 80 96 | 17.5 14.5 11 | 2900 | 4.08 4.71 4.57 | 56 67 63 | 3.2 3.2 4.5 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
100-80-160 | 60 100 120 | 35 32 28 | 2900 | 10.32 13.02 14.28 | 56 67 64 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-80-160A | 54 90 108 | 29 26 22 | 2900 | 7.75 9.66 10.27 | 55 60 63 | 3.2 3.2 4.5 | 160M2-2 15 | 160M2-2 15 | 180M-2 22 |
100-80-160B | 48 80 96 | 26 23.1 19 | 2900 | 6.29 7.74 8.01 | 54 65 62 | 3.2 3.2 4.5 | 160M1-2 11 | 160M1-2 11 | 160M2-2 15 |
100-65-200 | 60 100 120 | 54 50 47 | 2900 | 17.33 21.98 24.38 | 51 62 63 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 250M-2 55 |
100-65-200A | 54 90 108 | 44.5 40.5 37.5 | 2900 | 14.71 16.01 17.5 | 51 62 63 | 3.2 3.2 4.5 | 180M-2 22 | 200L1-2 30 | 200L2-2 37 |
100-65-200B | 48 80 96 | 40 36 33 | 2900 | 10.46 12.86 13.88 | 50 61 62 | 3.2 3.2 4.5 | 160L-2 18.5 | 180M-2 22 | 200L1-2 30 |
100-65-250 | 60 100 120 | 86 80 74.5 | 2900 | 28.16 35.74 39.26 | 50 61 62 | 3.2 3.2 4.5 | 225M-2 45 | 250M-2 55 | 280S-2 75 |
100-65-250A | 54 90 108 | 71 65 59 | 2900 | 20.88 26.12 28.0 | 50 61 62 | 3.2 3.2 4.5 | 200L2-2 37 | 225M-2 45 | 250M-2 55 |
100-65-250B | 48 80 96 | 63.8 57.8 52 | 2900 | 17.02 20.99 22.29 | 49 60 61 | 3.2 3.2 4.5 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
100-65-315 | 60 100 120 | 132 125 118 | 2900 | 50.26 63.09 70.11 | 43 54 55 | 3.2 3.2 4.5 | 280S-2 75 | 315S-2 110 | 315M-2 132 |
100-65-315A | 54 90 108 | 108 101 94 | 2900 | 38.74 47.61 52.16 | 41 52 53 | 3.2 3.2 4.5 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
100-65-315B | 48 80 96 | 97 90 83 | 2900 | 30.92 37.70 40.95 | 41 52 53 | 3.2 3.2 4.5 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-200 | 120 200 240 | 54 50 47 | 2900 | 34.16 39.47 42.79 | 55 69 68 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 280M-2 90 |
125-100-200A | 108 180 216 | 48 40.5 35 | 2900 | 26.14 29.20 30.73 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 250M-2 55 | 280S-2 75 |
125-100-200B | 90 150 180 | 43 36 30.5 | 2900 | 19.52 22.31 24.50 | 54 68 67 | 4.5 4.5 5.0 | 200L2-2 37 | 200L2-2 37 | 250M-2 55 |
125-100-250 | 120 200 240 | 87 80 74.5 | 2900 | 52.65 66.02 72.68 | 54 66 67 | 4.5 4.5 5.0 | 280S-2 75 | 315S-2 110 | 315L1-2 160 |
125-100-250A | 108 180 216 | 72 65 59.5 | 2900 | 39.96 49.02 53.03 | 53 65 66 | 4.5 4.5 5.0 | 250M-2 55 | 280S-2 75 | 315S-2 110 |
125-100-250B | 90 150 180 | 64.8 57.8 54 | 2900 | 29.97 41.15 42 | 53 65 66 | 4.5 4.5 5.0 | 225M-2 45 | 280S-2 75 | 315S-2 110 |
125-100-315 | 120 200 240 | 132.5 125 120 | 2900 | 80.2 104 118 | 54 65 66 | 4.5 4.5 5.0 | 315M-2 132 | 315M-2 132 | 315L1-2 160 |
125-100-315A | 108 180 216 | 107.3 101.3 97.2 | 2900 | 59.5 78.8 90.7 | 53 63 63 | 4.5 4.5 5.0 | 315S-2 110 | 315M-2 132 | 315L1-2 160 |
125-100-315B | 96 160 192 | 84.8 80 76.8 | 2900 | 41.8 56.2 64.8 | 53 62 62 | 4.5 4.5 5.0 | 280M-2 90 | 315S-2 110 | 315M-2 132 |
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
50-32-125 | 3.75 6.3 7.5 | 5.5 5 4.6 | 1450 | 0.16 0.19 0.20 | 36 46 47 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125A | 3.4 5.7 6.8 | 4.5 4.1 3.6 | 1450 | 0.12 0.14 0.15 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-125B | 3.1 5.2 6.2 | 4 3.6 3.3 | 1450 | 0.10 0.11 0.12 | 35 45 46 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160 | 3.75 6.3 7.5 | 8.6 8 7.2 | 1450 | 0.31 0.35 0.37 | 28 39 40 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
50-32-160A | 3.4 5.7 6.8 | 7.1 6.5 5.8 | 1450 | 0.24 0.26 0.28 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-160B | 3.1 5.2 6.2 | 6.4 5.8 5.1 | 1450 | 0.20 0.22 0.22 | 27 38 39 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
50-32-200 | 3.75 6.3 7.5 | 13.1 12.5 12 | 1450 | 0.61 0.69 0.74 | 22 31 33 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
50-32-200A | 3.4 5.7 6.8 | 10.8 10.1 9.6 | 1450 | 0.47 0.52 0.56 | 21 30 32 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
50-32-200B | 3.1 5.2 6.2 | 9.6 9 8.5 | 1450 | 0.39 0.42 0.45 | 21 30 32 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
50-32-250 | 3.75 6.3 7.5 | 20.5 20 19.5 | 1450 | 1.39 1.42 1.47 | 15 24 27 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
50-32-250A | 3.4 5.7 6.8 | 16.8 16.3 15.9 | 1450 | 1.03 1.09 1.13 | 15 23 26 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
50-32-250B | 3.1 5.2 6.2 | 15 14.5 14.1 | 1450 | 0.84 0.89 0.91 | 15 23 26 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-50-125 | 7.5 12.5 15 | 5.5 5 4.6 | 1450 | 0.27 0.31 0.34 | 42 54 55 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-50-125A | 6.8 11.3 13.6 | 4.5 4.1 3.6 | 1450 | 0.20 0.24 0.25 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-125B | 6.1 10.1 12.1 | 4 3.6 3.3 | 1450 | 0.16 0.19 0.22 | 41 53 54 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 801-4 0.55 |
65-50-160 | 7.5 12.5 15 | 8.8 8.0 7.2 | 1450 | 0.46 0.54 0.58 | 38 50 51 | 2.0 2.0 2.5 | 802-4 0.75 | 90L-4 1.1 | 90L-4 1.1 |
65-50-160A | 6.8 11.3 13.6 | 7.1 6.5 5.8 | 1450 | 0.36 0.41 0.43 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 802-4 0.75 | 90L-4 1.1 |
65-50-160B | 6.1 10.1 12.1 | 6.4 5.8 5.1 | 1450 | 0.29 0.33 0.34 | 37 49 50 | 2.0 2.0 2.5 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
65-40-200 | 7.5 12.5 15 | 13.2 12.5 11.8 | 1450 | 0.87 0.99 1.07 | 31 43 45 | 2.0 2.0 2.5 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
65-40-200A | 6.8 11.3 13.6 | 10.8 10.1 9.6 | 1450 | 0.67 0.74 0.81 | 30 42 44 | 2.0 2.0 2.5 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
65-40-200B | 6.1 10.1 12.1 | 9.6 9 8.5 | 1450 | 0.53 0.59 0.64 | 30 42 44 | 2.0 2.0 2.5 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
65-40-250 | 7.5 12.5 15 | 20.5 20 19.5 | 1450 | 1.82 1.94 2.10 | 23 35 38 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
65-40-250A | 6.8 11.3 13.6 | 16.8 16.3 15.9 | 1450 | 1.41 1.48 1.59 | 22 34 37 | 2.0 2.0 2.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
65-40-250B | 6.1 10.1 12.1 | 15 14.5 14.1 | 1450 | 1.12 1.17 1.26 | 22 34 37 | 2.0 2.0 2.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
65-40-315 | 7.5 12.5 15 | 32.3 32 30.7 | 1450 | 3.29 3.89 4.18 | 20 28 31 | 2.5 2.5 3.0 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
65-40-315A | 6.8 11.3 13.6 | 25.8 25.2 24.5 | 1450 | 2.33 2.87 2.93 | 20 29 31 | 2.5 2.5 3.0 | 112M-4 4 | 112M-4 4 | 132S-4 5.5 |
65-40-315B | 6.1 10.1 12.1 | 23 22.5 22 | 1450 | 1.91 2.30 2.34 | 20 27 31 | 2.5 2.5 3.0 | 100L-4 3 | 112M-4 4 | 132S-4 5.5 |
80-65-125 | 15 25 30 | 5.6 5.0 4.5 | 1450 | 0.51 0.56 0.58 | 45 61 62 | 2.5 2.5 3.0 | 802-4 0.75 | 90S-4 1.1 | 90S-4 1.1 |
80-65-125A | 13.5 22.5 27 | 4.5 4.1 3.6 | 1450 | 0.38 0.42 0.43 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 802-4 0.75 | 90S-4 1.1 |
80-65-125B | 12.8 21.3 25.6 | 4 3.6 3.3 | 1450 | 0.32 0.35 0.38 | 44 60 61 | 2.5 2.5 3.0 | 801-4 0.55 | 801-4 0.55 | 802-4 0.75 |
80-65-160 | 15 25 30 | 9 8 7.2 | 1450 | 0.82 0.92 1.01 | 45 59 58 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-65-160A | 13.5 22.5 27 | 7.1 6.5 5.8 | 1450 | 0.59 0.69 0.75 | 44 58 57 | 2.3 2.3 2.8 | 90S-4 1.1 | 90S-4 1.1 | 90L-4 1.5 |
80-65-160B | 12.8 21.3 25.6 | 6.4 5.8 5.1 | 1450 | 0.51 0.58 0.67 | 44 58 57 | 2.3 2.3 2.8 | 802-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
80-50-200 | 15 25 30 | 13.2 12.5 11.8 | 1450 | 1.32 1.55 1.69 | 41 55 57 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-200A | 13.5 22.5 27 | 10.8 10.1 9.6 | 1450 | 0.99 1.15 1.26 | 40 54 56 | 2.3 2.3 2.8 | 90L-4 1.5 | 100L1-4 2.2 | 100L2-4 3 |
80-50-200B | 12.8 21.3 25.6 | 9.6 9 8.5 | 1450 | 0.84 0.97 1.06 | 40 54 56 | 2.3 2.3 2.8 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
80-50-250 | 15 25 30 | 21 20 18.8 | 1450 | 2.32 2.83 3.13 | 37 48 49 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
80-50-250A | 13.5 22.5 27 | 16.8 16.3 15.1 | 1450 | 1.72 2.13 2.31 | 36 47 48 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
80-50-250B | 12.8 21.3 25.6 | 15 14.5 13.4 | 1450 | 1.45 1.79 1.95 | 36 47 48 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
80-50-315 | 15 25 30 | 32.5 32 31.5 | 1450 | 4.92 5.58 6.43 | 27 39 40 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
80-50-315A | 13.5 22.5 27 | 25.8 25.2 24.5 | 1450 | 3.65 4.06 4.62 | 26 38 39 | 2.3 2.3 2.8 | 132S-4 4 | 132M-4 7.5 | 160M-4 11 |
80-50-315B | 12.8 21.3 25.6 | 23 22.5 22 | 1450 | 3.09 3.44 3.93 | 26 38 39 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-80-125 | 30 50 60 | 6 5 4.1 | 1450 | 0.88 1.02 1.05 | 56 67 64 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125A | 27.6 46 55.2 | 4.5 4.1 3.6 | 1450 | 0.62 0.78 0.86 | 55 66 63 | 2.5 2.5 3.0 | 90S-4 1.1 | 90L-4 1.5 | 100L1-4 2.2 |
100-80-125B | 25.5 42.5 51 | 4 3.6 3.3 | 1450 | 0.50 0.63 0.73 | 55 66 63 | 2.5 2.5 3.0 | 802S-4 0.75 | 90S-4 1.1 | 90L-4 1.5 |
100-80-160 | 30 50 60 | 9.2 8.0 6.8 | 1450 | 1.32 1.68 1.83 | 57 65 61 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-80-160A | 27.5 46 55.2 | 7.1 6.5 5.8 | 1450 | 0.95 1.27 1.45 | 56 64 60 | 2.5 2.5 3.5 | 100L1-4 2.2 | 100L1-4 2.2 | 100L2-4 3 |
100-80-160B | 25.5 42.5 51 | 6.4 5.8 5.1 | 1450 | 0.79 1.05 1.18 | 56 64 60 | 2.5 2.5 3.5 | 90L-4 1.5 | 100L1-4 2.2 | 100L1-4 2.2 |
100-65-200 | 30 50 60 | 13.5 12.5 11.8 | 1450 | 2.35 2.75 3.07 | 49 62 63 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-200A | 27.6 46 55.2 | 10.8 10.1 9.6 | 1450 | 1.69 2.07 2.33 | 48 61 62 | 2.3 2.3 2.8 | 100L2-4 3 | 112M-4 4 | 132S-4 5.5 |
100-65-200B | 25.5 42.5 51 | 9.6 9.0 8.5 | 1450 | 1.39 1.71 1.90 | 48 61 62 | 2.3 2.3 2.8 | 100L1-4 2.2 | 100L2-4 3 | 112M-4 4 |
100-65-250 | 30 50 60 | 21.3 20 19 | 1450 | 3.78 4.62 5.10 | 46 59 61 | 2.3 2.3 2.8 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
100-65-250A | 27.6 46 55.2 | 16.8 16.3 15.9 | 1450 | 2.81 3.52 3.98 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132S-4 5.5 |
100-65-250B | 25.5 42.5 51 | 15 14.5 14 | 1450 | 2.31 2.89 3.24 | 45 58 60 | 2.3 2.3 2.8 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
100-65-315 | 30 50 60 | 34 32 30 | 1450 | 7.12 8.55 9.45 | 39 51 52 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
100-65-315A | 27.6 46 55.2 | 26 25.2 24.5 | 1450 | 5.14 6.31 7.22 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
100-65-315B | 25.5 42.5 51 | 23 22.5 22 | 1450 | 4.20 5.21 5.99 | 38 50 51 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-200 | 60 100 120 | 14.5 12.5 11.0 | 1450 | 4.40 5.01 5.36 | 54 68 67 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200A | 54 90 108 | 11.5 10.5 9.8 | 1450 | 3.19 3.84 4.37 | 53 67 66 | 2.8 2.8 3.5 | 132S-4 5.5 | 132M-4 7.5 | 160M-4 11 |
125-100-200B | 48 80 96 | 9.8 9.0 8.5 | 1450 | 2.42 2.93 3.37 | 53 67 66 | 2.8 2.8 3.5 | 112M-4 4 | 132S-4 5.5 | 132M-4 7.5 |
125-100-250 | 60 100 120 | 21.3 20 19 | 1450 | 6.71 8.39 9.26 | 52 65 67 | 2.3 2.3 2.8 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-250A | 54 90 108 | 16.8 16.3 15.9 | 1450 | 4.84 6.24 7.08 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 160M-4 11 | 160L-4 15 |
125-100-250B | 48 80 96 | 15.0 14.5 14.0 | 1450 | 3.84 4.94 5.55 | 51 64 66 | 2.3 2.3 2.8 | 132M-4 7.5 | 132S-4 5.5 | 160M-4 11 |
125-100-315 | 60 100 120 | 33.5 32 30.5 | 1450 | 12.2 14.5 16.3 | 45 60 61 | 2.5 2.5 3.0 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
125-100-315A | 54 90 108 | 27.1 25.9 24.7 | 1450 | 9.0 10.8 12.1 | 44 59 60 | 2.5 2.5 3.0 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
125-100-315B | 48 80 96 | 21.4 20.5 19.5 | 1450 | 6.5 7.7 8.6 | 43 58 59 | 2.5 2.5 3.0 | 160M-4 11 | 160L-4 15 | 180M-4 18.5 |
125-100-400 | 60 100 120 | 52 50 48.5 | 1450 | 17.0 26.2 29.4 | 50 52 54 | 2.5 2.5 3.0 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
125-100-400A | 54 90 108 | 42.1 40.5 39.3 | 1450 | 12.4 19 21.4 | 50 52 54 | 2.5 2.5 3.0 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
125-100-400B | 48 80 96 | 33.3 32 31 | 1450 | 8.9 13.7 15.3 | 49 51 53 | 2.5 2.5 3.0 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250 | 120 200 240 | 24.8 20 15 | 1450 | 15.6 17.3 18.2 | 52 63 54 | 2.5 2.8 3.5 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-250A | 108 180 216 | 20.1 16.2 12.2 | 1450 | 11.6 12.8 13.5 | 51 62 53 | 2.5 2.8 3.5 | 180M-4 18.5 | 180L-4 22 | 200L-4 30 |
150-125-250B | 97.2 162 194 | 15.9 12.8 9.6 | 1450 | 8.3 9.1 9.6 | 51 62 53 | 2.5 2.8 3.5 | 160L-4 15 | 180M-4 18.5 | 180L-4 22 |
150-125-315 | 120 200 240 | 36.3 32 28.5 | 1450 | 23.7 28.1 31.6 | 50 62 59 | 2.5 2.8 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
150-125-315A | 108 180 216 | 29.4 25.9 23.1 | 1450 | 17.3 20.5 23.0 | 50 62 59 | 2.5 2.8 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
150-125-315B | 97.2 162 194 | 23.2 20.5 18.3 | 1450 | 12.5 14.8 16.7 | 49 61 58 | 2.5 2.8 3.8 | 180L-4 22 | 200L-4 30 | 225S-4 37 |
150-125-400 | 120 200 240 | 57.5 50 44 | 1450 | 40.0 48.6 58.7 | 47 56 49 | 2.0 2.8 3.5 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
150-125-400A | 108 180 216 | 46.6 40.5 35.6 | 1450 | 29.2 35.5 42.7 | 47 56 49 | 2.0 2.8 3.5 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
150-125-400B | 97.2 162 194 | 36.8 32 28.2 | 1450 | 20.7 25.2 35.4 | 47 56 49 | 2.0 2.8 3.5 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250 | 240 400 460 | 24.8 20 18 | 1450 | 28.9 32.5 38.8 | 56 67 58 | 2.8 3.2 3.8 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-250A | 216 360 414 | 20.1 16.2 14.6 | 1450 | 21.5 24.0 28.9 | 55 66 57 | 2.8 3.2 3.8 | 225S-4 37 | 225M-4 45 | 250M-4 55 |
200-150-250B | 192 320 368 | 15.9 12.8 11.6 | 1450 | 15.1 16.9 20.4 | 55 66 57 | 2.8 3.2 3.8 | 200L-4 30 | 225S-4 37 | 225M-4 45 |
200-150-315 | 240 400 460 | 36.3 32 28.5 | 1450 | 43.1 52.0 54.9 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315A | 216 360 414 | 29.4 25.9 23.1 | 1450 | 31.4 37.9 40.0 | 55 67 65 | 3.0 3.5 4.0 | 250M-4 55 | 280S-4 75 | 280M-4 90 |
200-150-315B | 192 320 368 | 23.2 20.5 18.3 | 1450 | 22.5 27.0 28.7 | 54 66 64 | 3.0 3.5 4.0 | 225M-4 45 | 250M-4 55 | 280S-4 75 |
200-150-400 | 240 400 460 | 56 50 46.5 | 1450 | 67.8 89.3 104.0 | 54 61 56 | 3.0 3.8 4.5 | 315S-4 110 | 315M-4 132 | 315L1-4 |
200-150-400A | 216 360 414 | 45.3 40.5 37.7 | 1450 | 49.4 65.1 75.9 | 54 61 56 | 3.0 3.8 4.5 | 280M-4 90 | 315S-4 110 | 315M-4 132 |
200-150-400B | 192 320 368 | 35.8 32 29.8 | 1450 | 34.7 45.7 53.3 | 54 61 56 | 3.0 3.8 4.5 | 280S-4 75 | 280M-4 90 | 315S-4 110 |
