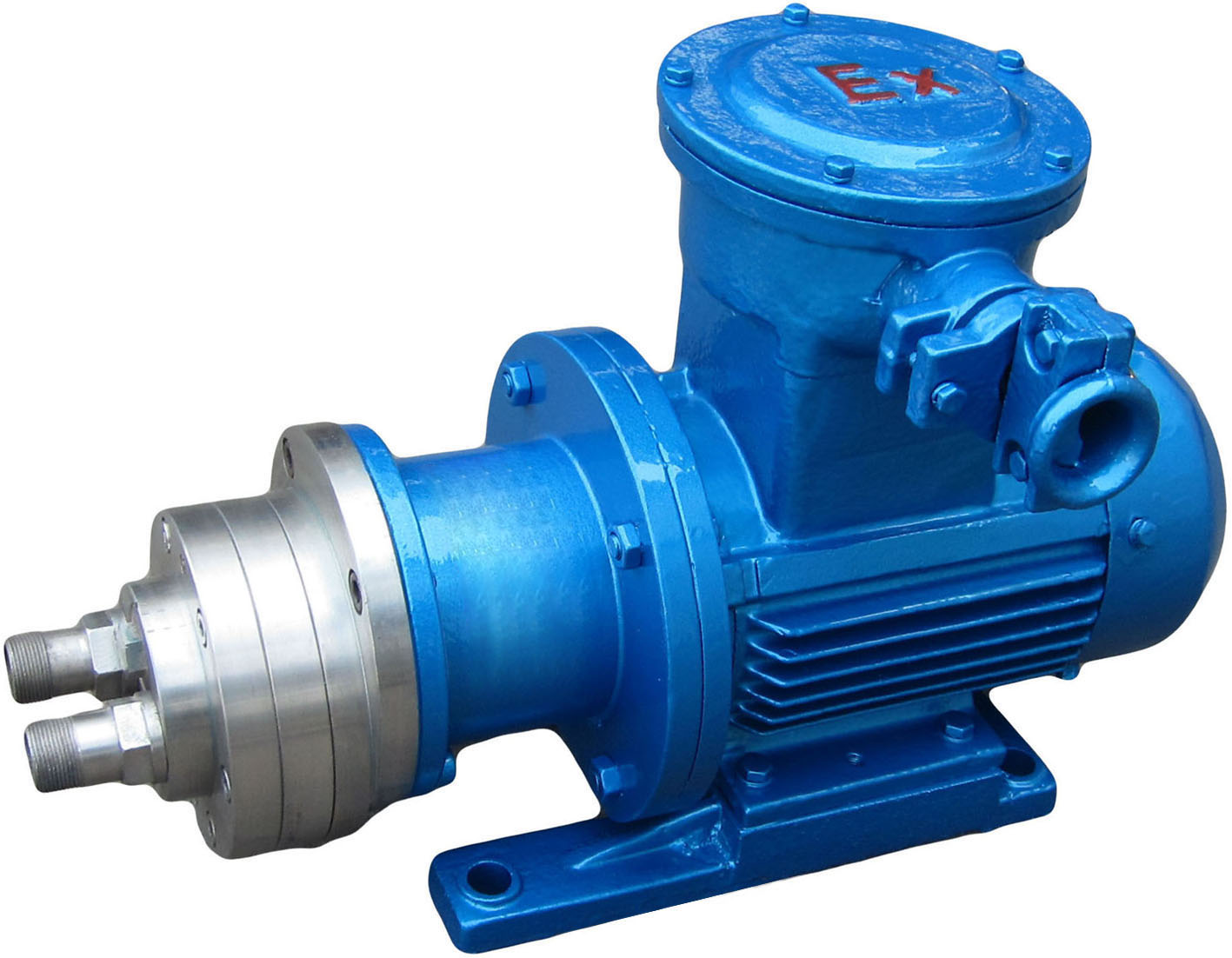

Overflow components of the pump are made of 304, 316, 316L, Titanium, etc. The structure of pump is connecting directly.
Brand name: Tianxiang
Place of Origin: Taicang, China
Delivery port: Shanghai port
Performance:
Flow capacity: 0.37 - 3m3/h
High lift: 20-60m
Highest temperature: 300 ℃
Pressure: 1.6MPa.
Function: To transfer organic chemical medium with large viscidity. It can also transfer oil.
It can be used in the environment with low temperature.
Feathers:
Pump's flow is small, but lift is large. To transfer high temperature medium, a shaft coupling is needed. The operating performance is improved by hydraulic model, Hastelloy isolation cover and polished Impeller passage.
(1) With our own technology of hydraulic model, magnetic pump's performance improves 3 % to 8 %, comparing to regular hydraulic model. This technology reaches an advanced world level.
(2) Pump's body which supporting sliding bearing has a structure of double supporting and double-cover plate. This reduces the degree of pump body’s deformation and make magnetic pump's operation more reliable.
(3) Power saving.
(4) Has excellent corrosion resistance and high temperature resistance.
(5) Unique design makes the pump safe and durable.
(6) Easy to check and maintain.
Performance Parameter Table | ||||||||
Type | Flow Rate m3/h | Pressure Mpa | Height Permitted m | Motor Type | Power kw | Rotational Speed r/min | Operating Temperature ℃ | Weight kg |
CSH-2 | 0.037 | 0.2 | Self-priming 3 | JW5614 | 0.09 | 1450 | <50 | 15 |
CSH-4 | 1 | 0.4 | Self-priming 4 | Y80 | 0.55 | 1400 | <50 | 20 |
CSH-6 | 3 | 0.6 | Self-priming 4 | Y90L | 1.5 | 1400 | <50 | 35 |
