National patent product (plastic magnetic driving pump, ZL200410000791.4).
The design standard conforms to ISO2858. The overflow component has a structure of steel-plastic compound. There is shaft coupling in the magnetic drive pump. When repairing, only the shaft coupling needs to be removed without moving the pipeline or motor.
Brand name: Tianxiang
Place of Origin: Taicang, China
Delivery port: Shanghai port
Flow rate: 1.8-100m3/h
Head: 15-80m
The highest operating temperature is 180℃, and the pressure is 1.0 MPa.
It can transport hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid, organic-inorganic mixed acid, etc.
Structure type: suspension

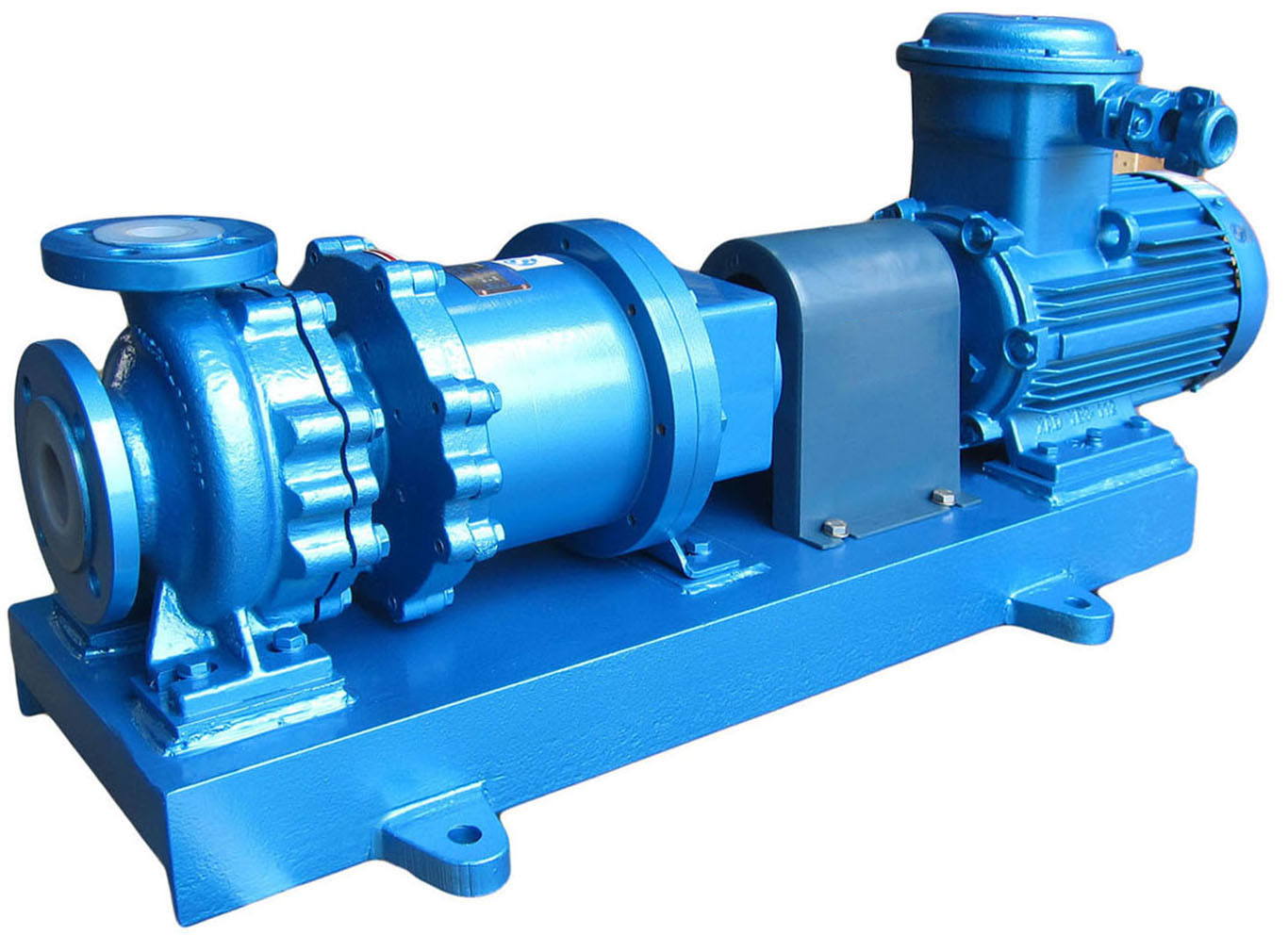

When conveying high-temperature media, there is no need to bring a cooling box. The use of advanced hydraulic models and the rotational molding process of the magnetic drive pump casing improves the efficiency of the transfer no leakage circulation magnetic drive pump.
The surface of the magnetic drive pump casing and the joint is lined with dovetail grooves, lined with various fluorine resins and polymer plastics. The pump shaft, impeller, isolating sleeve and inner magnetic steel components are made of reinforced carbon fiber and PEEK. These enhance the plastic layer's intensity, temperature resistance, abrasion resistance, preventing steel and plastic from peeling off, comparing to single resin.
