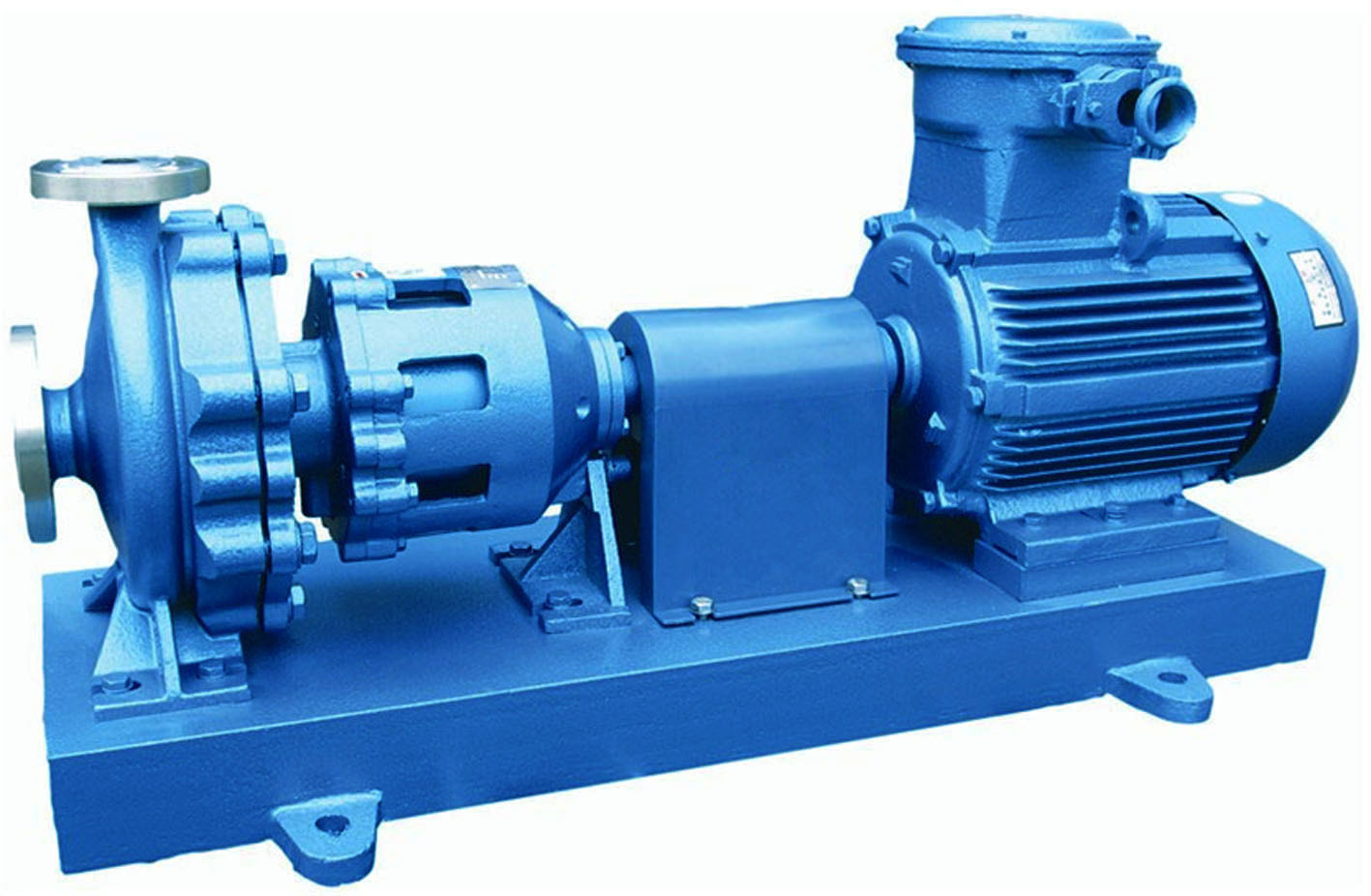

The pump's design conforms to ISO2858.
Overflow components are made of 304, 316, 316L, titanium etc. There is shaft coupling in the pump. For reparation, disassemble shaft coupling and there is no need to disassemble pipes or motor.
Flow capacity: 1.5-4m3/h
High lift: 30-165m
Highest operating temperature: 400 ℃
Pressure 1.6MPa.
To transfer organic chemical medium and hot oil.
The pump has small flow capacity, but high lift.
1.Structure: double supporting and double-cover plate.
2.The magnetic drive can be serviced independently from the pump chamber, without breaking the seal. This design is easy to maintain and provides consistent reliable operation.
3.Isolation sets are made of Hastelloy which has low magnetic permeability which have good corrosion resistance, pressure resistance and deformation resistance.
4.Impeller's channel is polished and grinded.
Performance Parameter Table | |||||||||
Type | Flow Rate m3/h | Head M | Rotational Speed r/min | Shaft Power Pa KW | Efficiency η % | NPSH | Motor Power KW | ||
Medium Density g/cm3 | |||||||||
1 | 1.35 | 1.85 | |||||||
IMC25-20-110L | 3 | 18 | 2900 | 0.57 | 26 | 2 | 802-2 1.1 | 802-2 1.1 | 802-2 1.1 |
IMC32-25-125L | 6 | 22 | 2900 | 0.70 | 40 | 3.5 | 90S-2 1.5 | 90S-2 1.5 | 90S-2 1.5 |
IMC40-32-150L | 1.5 | 30 | 2900 | 0.64 | 25 | 3.5 | 100L-2 3 | 100L-2 3 | 100L-2 3 |
IMC40-32-180L | 3 | 50 | 2900 | 1.7 | 25 | 3.5 | 112M-2 4 | 112M-2 4 | 112M-2 4 |
IMC40-32-220L | 4 | 90 | 2900 | 4.9 | 20 | 4.0 | 132S2-2 7.5 | 132S2-2 7.5 | 160M1-2 11 |
IMC40-32-250L | 4 | 110 | 2900 | 6.7 | 18 | 4.0 | 132S2-2 7.5 | 160M1-2 11 | 160M2-2 15 |
IMC40-32-315L | 4 | 165 | 2900 | 16.8 | 9 | 4.0 | 200L1-2 30 | 200L2-2 37 | 225M-2 45 |
In the operation test of the centrifugal pump, the whole system should be checked for air and liquid leaks, whether the performance meets the requirements, and whether the unit has large vibrations and abnormal noises. And only after all aspects are considered qualified, can it be put into operation.
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer in magnetic pump with high quality for over 40 years.
2. Q: How to customize pumps?
A: We need detailed pump data or drawing to select suitable pump. We are well in OEM and ODM.
3. Q: What information should I offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______
Temperature: _________
Capacity/Flow: ________m3/h
Head: _________m
Voltage: ____________V
Frequency: _________Hz
Power:_____________KW
4. Q: What is your minimum quantity?
A: One set is also welcomed.
5.Q:What is your lead time?
A:Depend on the quantity of orders.
6.Q:What about shipment or delivery?
A:Depnends on customer's requirements. Normally FOB.
