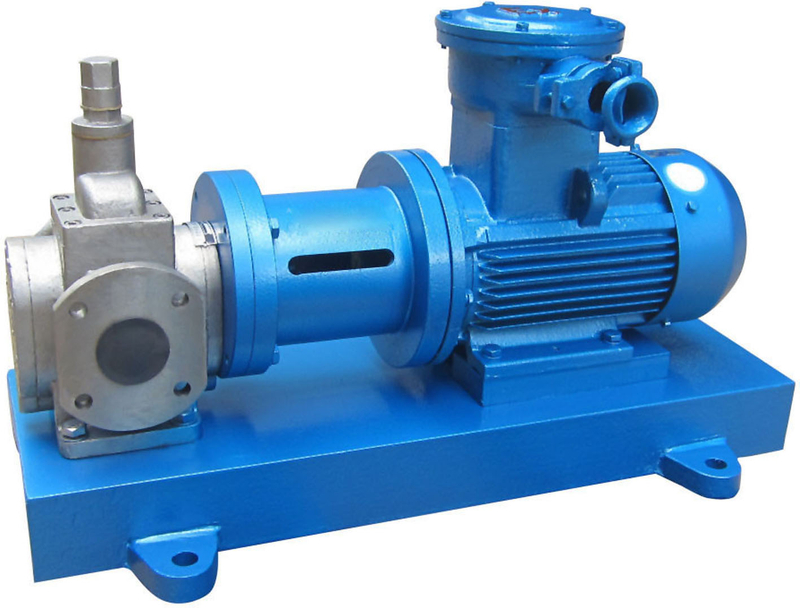

Pump's overflow components are made of 304, 316 316L, Titanium, etc. The structure of pump is connecting directly.
Flow capacity: 0.6-40m3 /h
High lift: 60m
Highest temperature: 300 ℃,
Pressure: 1.6MPa.
To transfer organic chemical medium with large viscidity.
Its flow is small, but lift is large. To transfer high temperature medium, a shaft coupling is needed. The operating performance is improved by hydraulic model, Hastelloy isolation cover and polished impeller passage.
1.With our own technology of hydraulic model, pump's performance improves 3 % to 8 %, comparing to regular hydraulic model. This technology reaches an advanced world level.
2.The components for sliding bearing have a structure of double supporting and double-cover plate. Comparing to single-cover plate, this structure reduces the degree of pump body's deformation and make pump's operation safer and more reliable.
3.Sliding bearing, shaft sleeve, thrust bearing are pump's wearing parts. While being made of tungsten carbide, pump can operate stably for a long time. there is no need to replace these components.
4.Isolation sets are made of Hastelloy which has low magnetic permeability. With Hastelloy stretch forming, isolation sets have better corrosion resistance, pressure resistance and deformation resistance than those of welding.
5.The company's original technology PEEK isolation sets with carbon fiber reinforced makes the metal magnetic pump without eddy current loss and achieves the same efficiency as the mechanical seal pump.
6.Impeller's channel is polished and grinded. This improves pump's performance by 3% to 12 %, comparing to unpolished. With this improvement, the cost of pumps can be recovered within 2 to 3 years.
Model | Flow Capacity m3/h | Lift Capacity m | Pressure MPa | Height Permitted m | Inlet/Outlet Diameter mm | Efficiency % | Rotational Speed r/min | Power kw |
CSL 0.6/0.6 | 0.6 | 10 | 0.6 | 3 | DN25 | 32 | 910 | 0.75 |
CSL 1.0/0.6 | 1 | 16.7 | 0.6 | 3 | DN25 | 32 | 1390 | 0.75 |
CSL 1.6/0.6 | 1.6 | 26.7 | 0.6 | 3 | DN32 | 42 | 910 | 0.75 |
CSL 2.5/0.6 | 2.5 | 42 | 0.6 | 3 | DN32 | 42 | 1400 | 1.1 |
CSL 3.3/0.6 | 3.3 | 55 | 0.6 | 3 | DN40 | 60 | 940 | 1.5 |
CSL 4/0.6 | 4 | 66 | 0.6 | 3 | DN50 | 60 | 940 | 1.5 |
CSL 5/0.6 | 5 | 83.3 | 0.6 | 3 | DN40 | 60 | 1420 | 2.2 |
CSL 6/0.6 | 6 | 100 | 0.6 | 3 | DN50 | 60 | 1420 | 2.2 |
CSL 8/0.6 | 8 | 133 | 0.6 | 3 | DN65 | 60 | 960 | 3 |
CSL 10/0.6 | 10 | 167 | 0.6 | 3 | DN65 | 60 | 960 | 4 |
CSL 12/0.6 | 12 | 200 | 0.6 | 3 | DN65 | 61 | 1440 | 5.5 |
CSL 15/0.6 | 15 | 250 | 0.6 | 3 | DN65 | 61 | 1440 | 5.5 |
CSL 20/0.6 | 20 | 333 | 0.6 | 3 | DN80 | 68 | 970 | 7.5 |
CSL 25/0.6 | 25 | 420 | 0.6 | 3 | DN80 | 69 | 970 | 11 |
CSL 30/0.6 | 30 | 500 | 0.6 | 3 | DN100 | 70 | 970 | 11 |
CSL 40/0.6 | 40 | 660 | 0.6 | 3 | DN125 | 72 | 970 | 15 |
Founded in 1979, Taicang Magnetic Drive Pump Co., Ltd. is the specialized manufacturer designing and producing magnetic drive pumps. The company has five authorized invention patents, fifteen utility model patents, and six copyright works. With an integration of professional design, research, manufacture and marketing, we have a leading international position in the field of magnetic drive pumps.
For the transportation of high-risk chemical media: flammable, explosive, highly toxic, etc. It's recommended to use a double-protection magnetic leak-proof centrifugal pump with an alarm device to allow users to reduce the occurrence of security accidents and reduce the risk of economic responsibility.
Our Metal Magnetic Drive Pump - the perfect solution for transporting various liquid chemicals without any leakage. Widely used in industries such as chemical, petroleum, pharmaceutical, steel, and electronics, this pump has helped companies comply with national laws on environmental protection, safety, cleanliness, labor protection, occupational disease prevention, and energy conservation.
Our Magnetic Drive Pump is designed with a reliable sliding bearing double support structure. Unlike most pumps with single cover plate structure, our pump features a rare double cover plate structure, making it even more durable and efficient.
Invest in our Metal Magnetic Drive Pump and experience worry-free liquid chemical transportation with no negative impact on the environment, safety, and productivity.
